Diffused Air De-Icing Systems: Protect your dock from costly ice damage

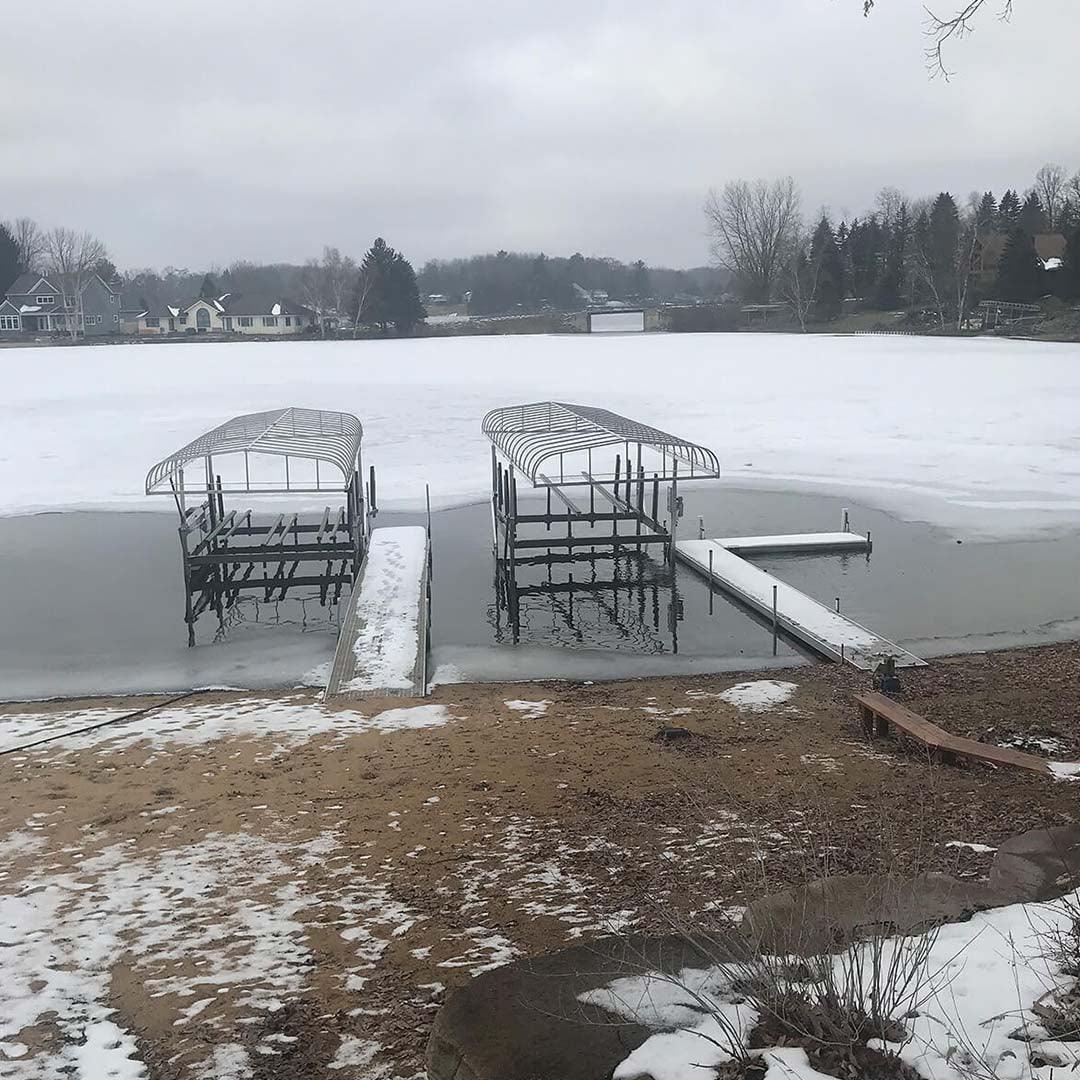

Diffused air de-icing systems are an excellent choice for keeping water open during the winter around boat lifts, docks, piers, marinas and other structures. Damage repair and labor costs to remove or install your dock every year can be expensive. For just a few dollars in energy per month, a diffused air system will maintain open water and protect your dock from ice damage.
A minimum of 3Â feet-deep water is needed for diffused air to be effective as a deicer. Deep water=larger hole kept open.
Hole size is determined by water depth and air temperature, be sure to size your system appropriately to your project. Please call us with any questions, Midwest Ponds will gladly help you pick out the best unit for your conditions. 833-779-2837
Â

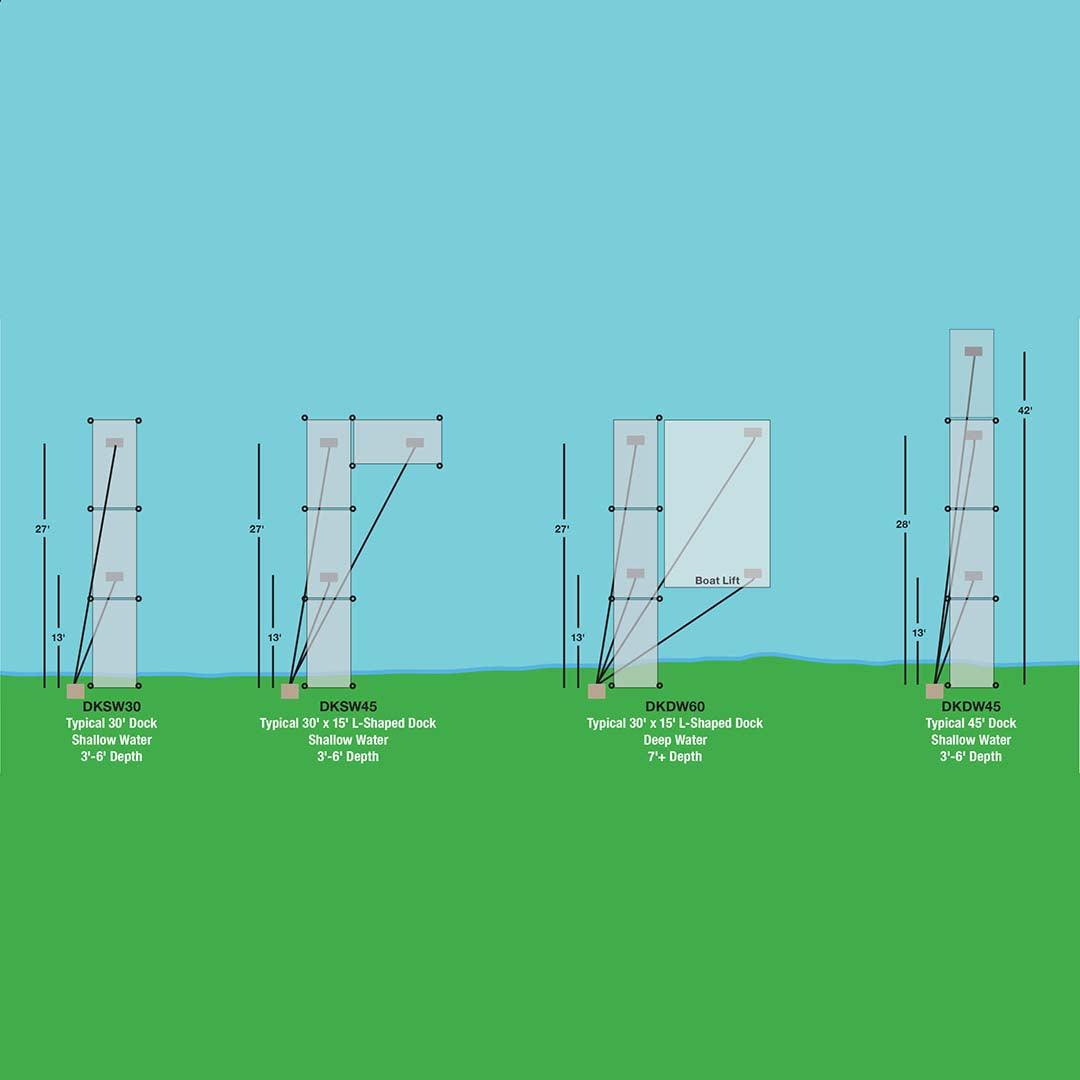

Shallow Water Systems for 3' - 6' Depths:Â DKSW30, DKSW45
Â
Deep Water Systems for 7'+: DKDW60, DKDW100
- Airline extension is possible with these systems.
Â

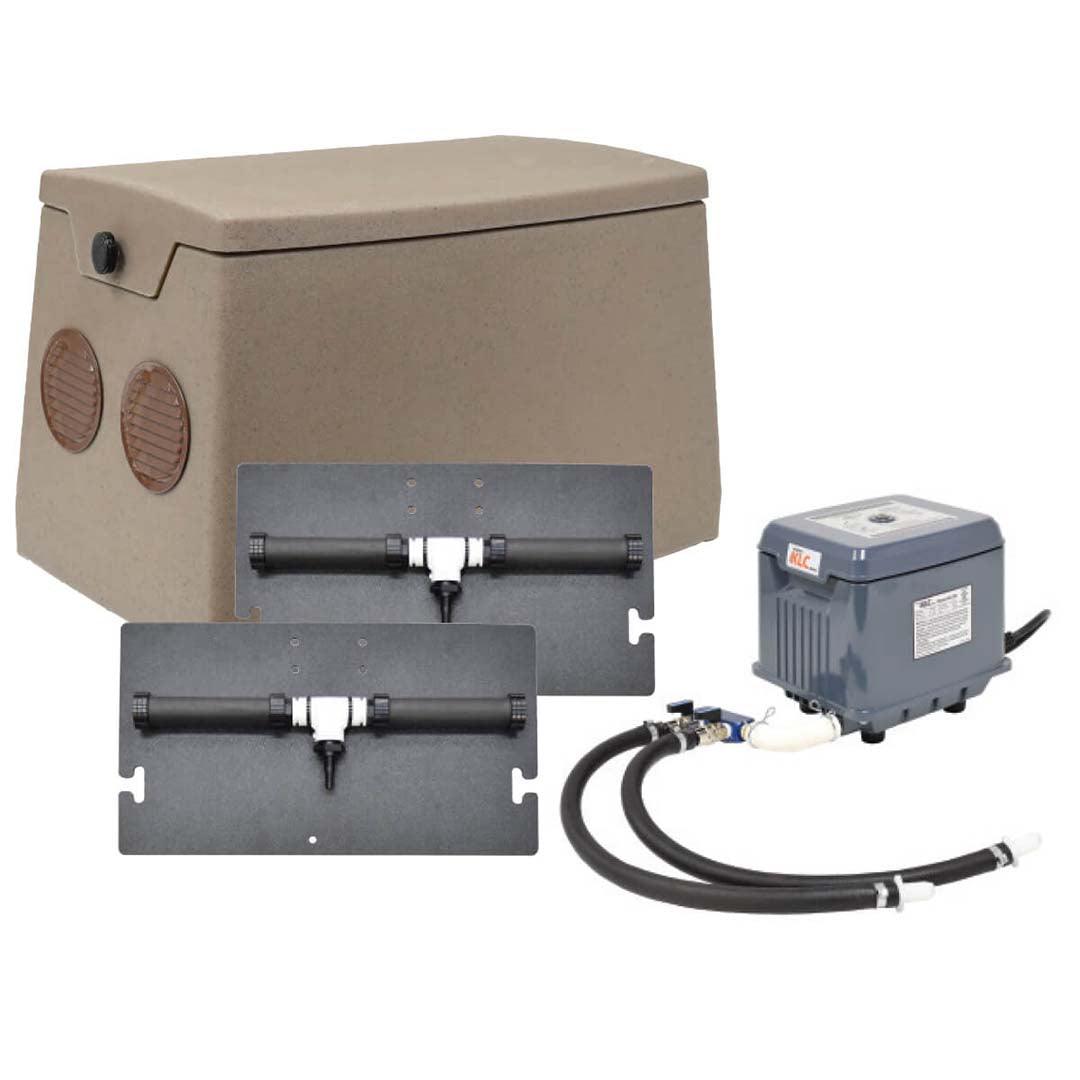

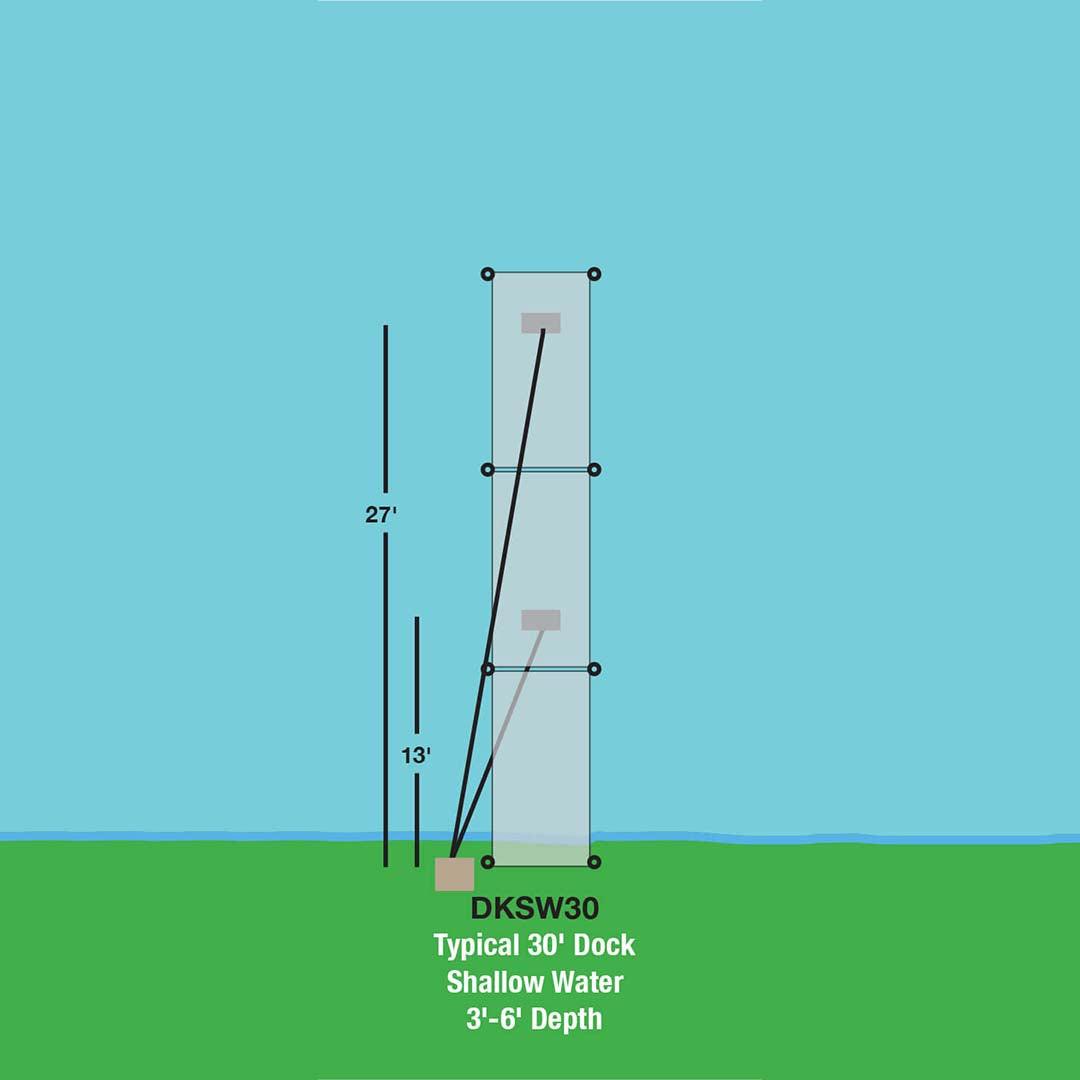

DKSW30 Air De-Icing System for Shallow Water – up to 30′ dock
Two diffuser system with KLC60 compressor for 3′ to 6′ depths and docks up to 30′ long.

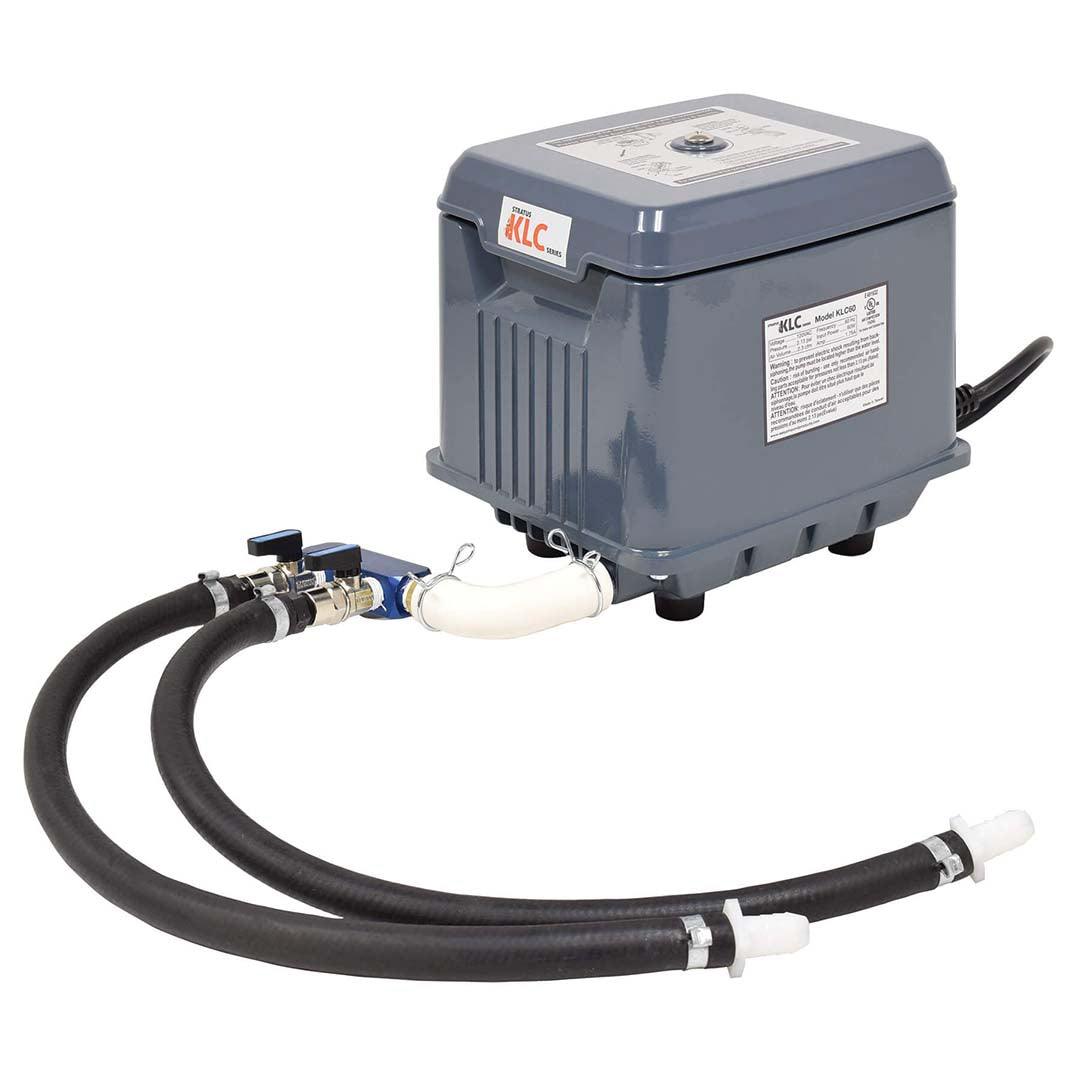

- KLC60 linear diaphragm compressor is extremely energy efficient, quiet and long lasting
- Two self-weighted DM2 air diffusers
- 50′ of 1/2″ Quick sink tubing for easy installation
- Weather resistant cabinet enclosure – for additional protection from elements
- Three year warranty on compressor, Five year warranty on tubing/diffusers
Â

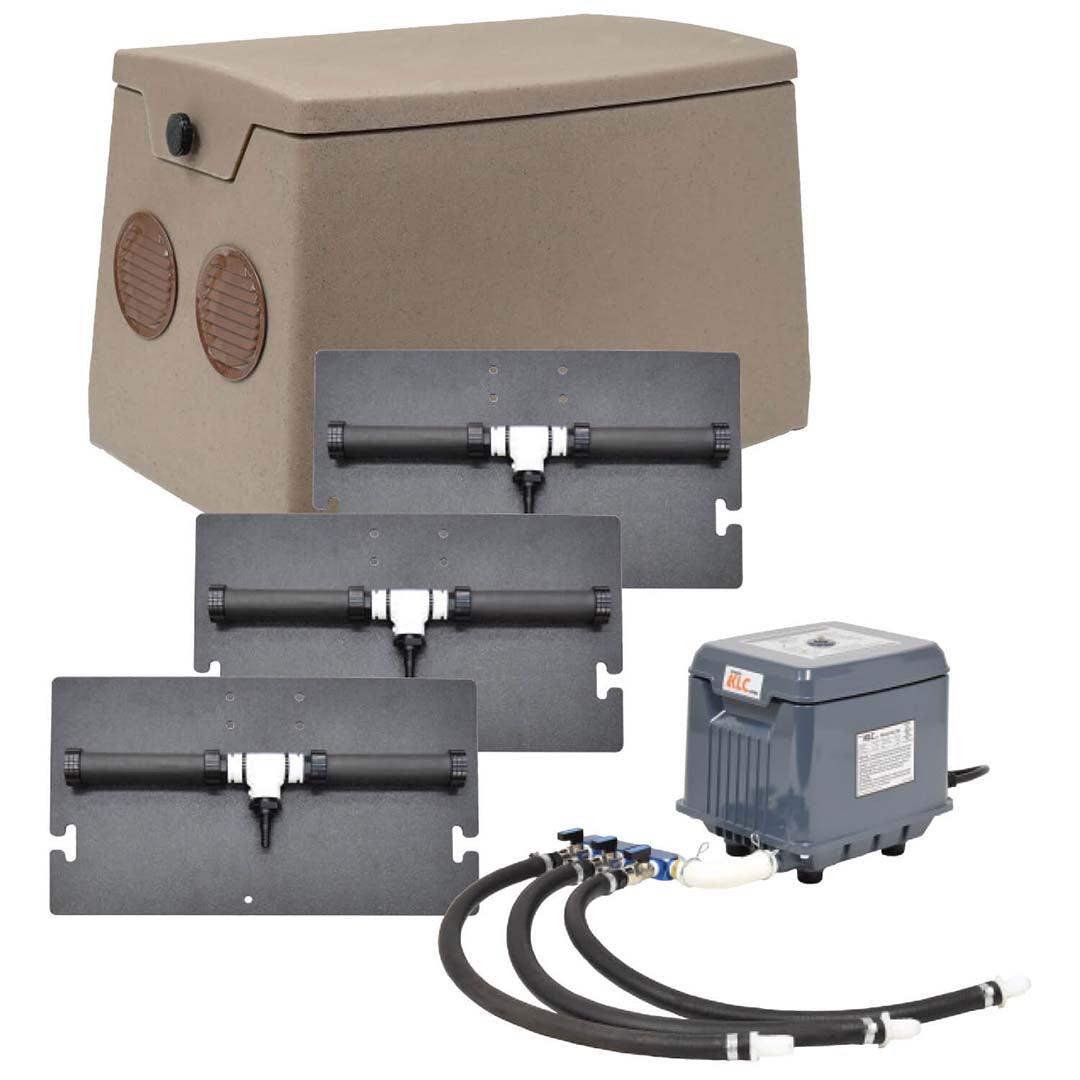

DKSW45 Air De-Icing System for Shallow Water – up to 45′ dock
Three diffuser system with KLC80 compressor for 3′ to 6′ depths and docks up to 45′ long.

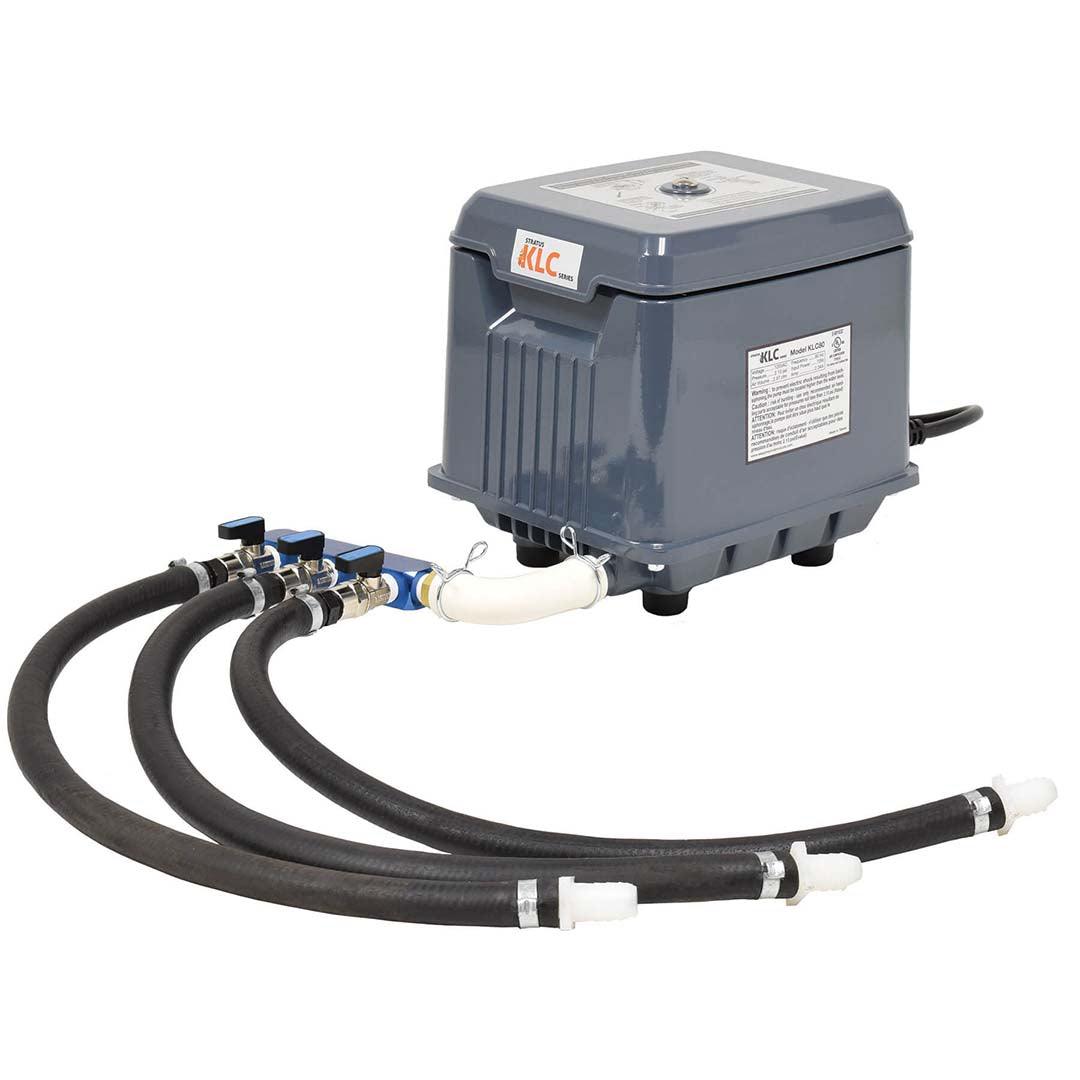

- KLC80 linear diaphragm compressor is extremely energy efficient, quiet and long lasting
- Three self-weighted DM2 air diffusers
- 100′ of 1/2″ Quick sink tubing for easy installation
- Weather resistant cabinet enclosure – for additional protection from elements
- Three year warranty on compressor, Five year warranty on tubing/diffusers
Â

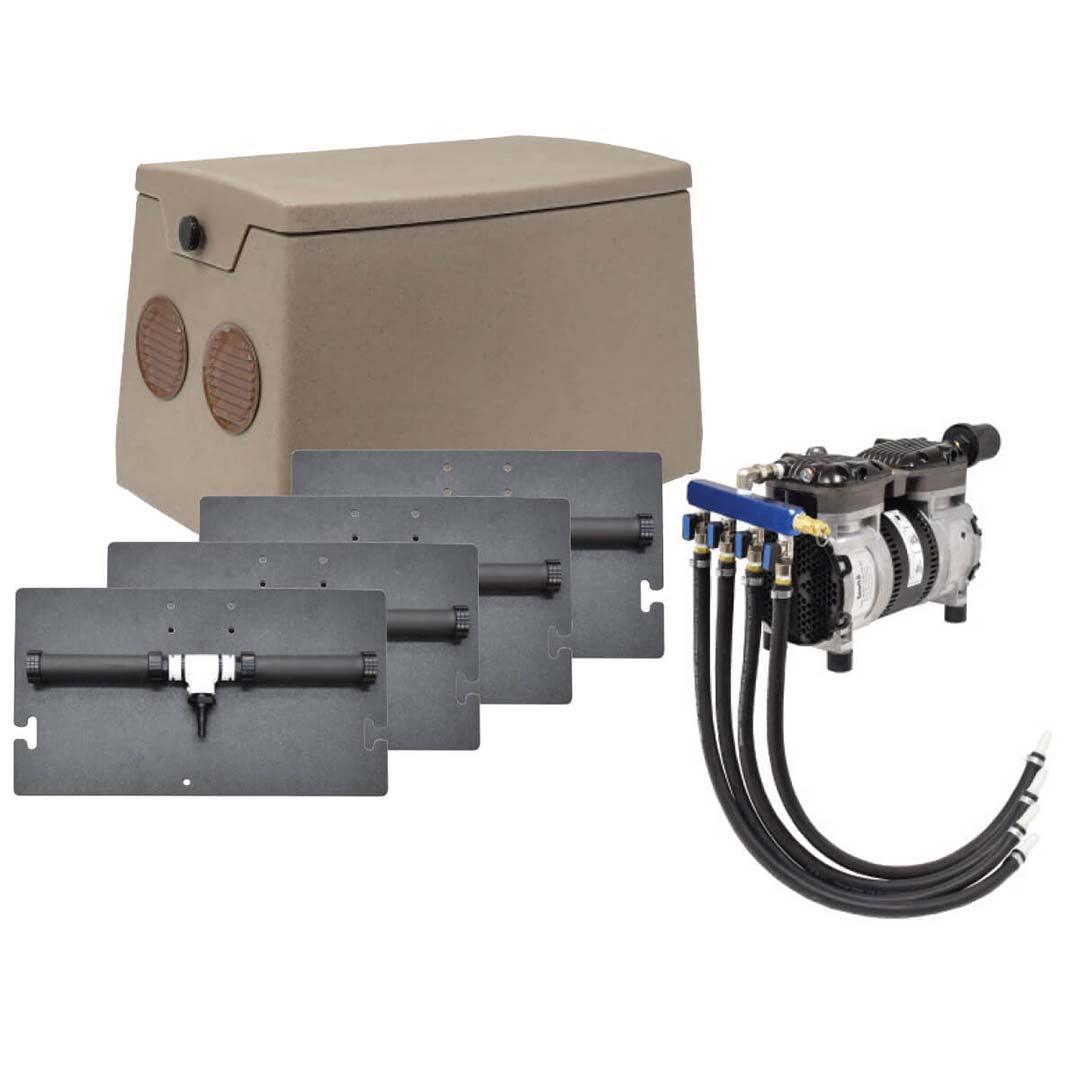

DKDW60 Air De-Icing System for Deep Water – up to 60′ dock
Four diffuser system with SRC50 compressor for depths 7’+ and docks up to 60′ long.

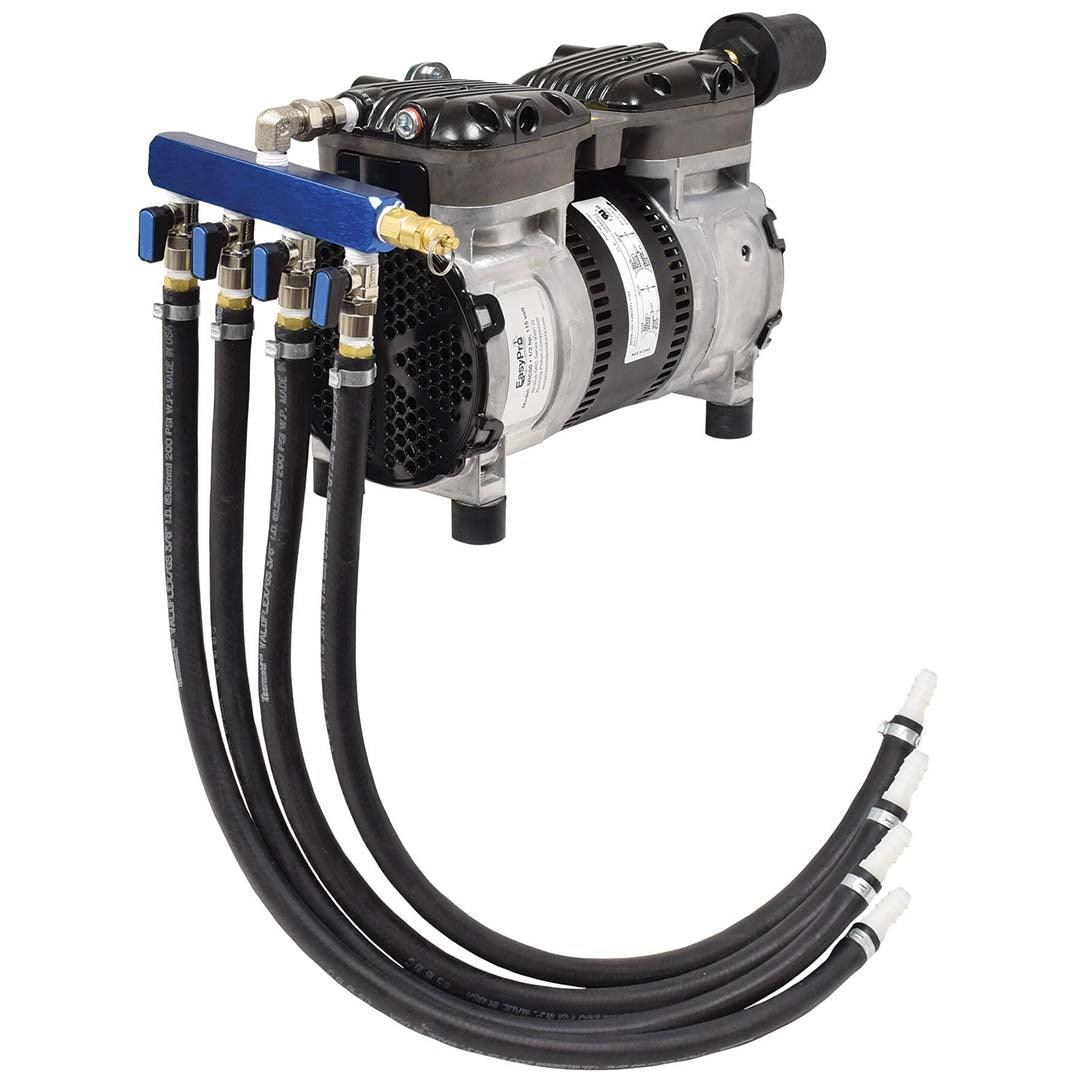

- SRC50 Stratus rocking piston compressor is energy efficient and powerful for deeper water
- Four self-weighted DM2 air diffusers
- 150′ of 3/8″ Quick sink tubing for easy installation
- Weather resistant cabinet enclosure – for additional protection from elements
- Two year warranty on compressor, Five year warranty on tubing/diffusers
Â

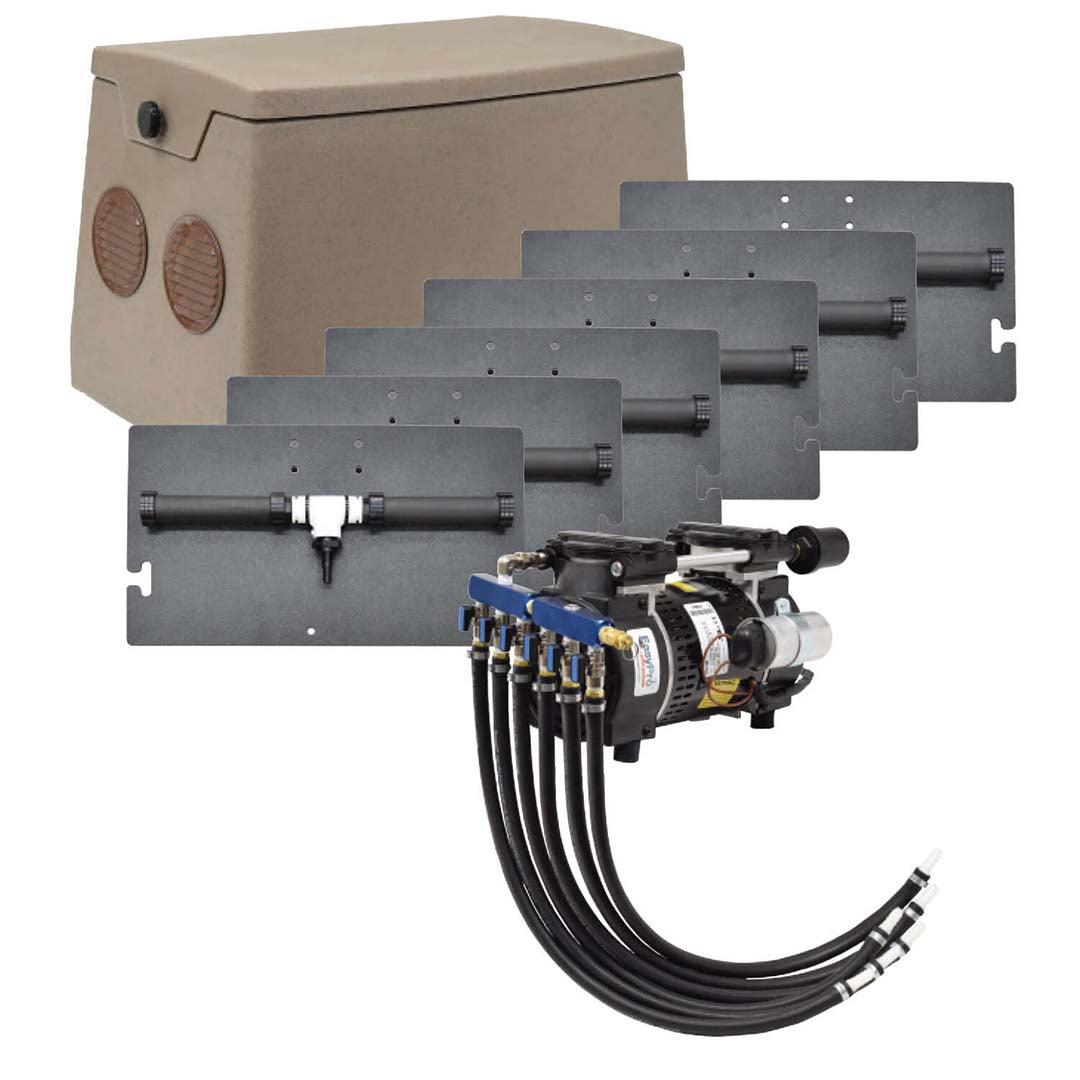

DKDW100 Air De-Icing System for Deep Water – up to 100′ dock
Six diffuser system with SRC75 compressor for depths 7’+ and docks up to 100′ long.

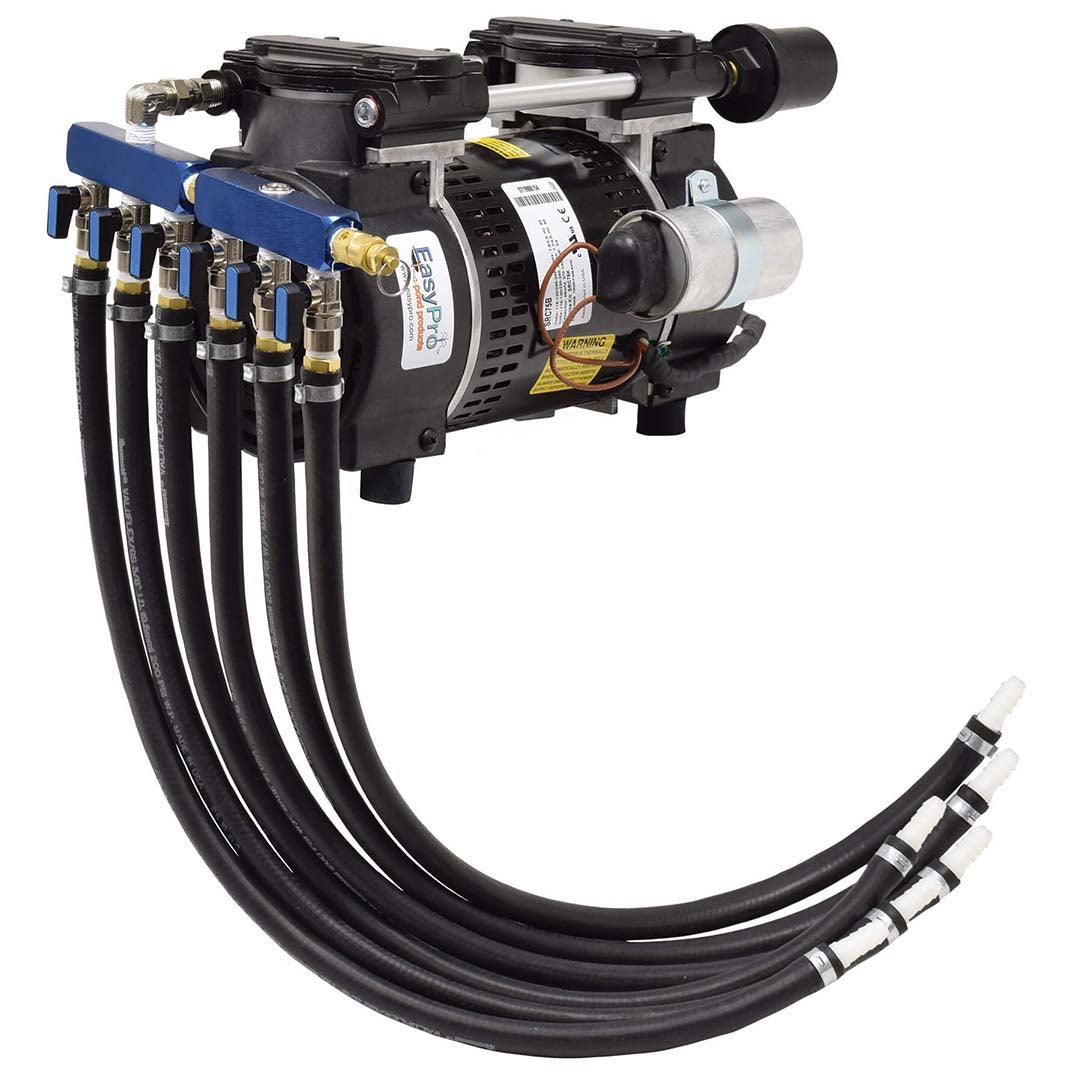

- SRC75 Stratus rocking piston compressor is energy efficient and powerful for deeper water
- Six self-weighted DM2 air diffusers
- 325′ of 3/8″ Quick sink tubing for easy installation
- Weather resistant cabinet enclosure – for additional protection from elements
- Two year warranty on compressor, Five year warranty on tubing/diffusers
Â
 |
DKSW30 |
DKSW45 |
DKDW60 |
DKDW100 |
Tubing |
50' of 1/2" Quick Sink |
100' of 1/2" Quick Sink |
150' of 3/8" Quick Sink |
325' of 3/8" Quick Sink |
Voltage |
115V |
115V |
115V |
115V |
Watts |
60 Watts |
70 Watts |
340-586 Watts |
398-620 Watts |
Maximum Air Flow |
3.1 cfm |
3.7 cfm |
4.5 cfm |
6.5 cfm |
Maximum Depth |
7' |
7' |
50' |
50' |
Weight |
73lbs |
88lbs |
103lbs |
156lbs |
Â
Compressor Manual
Â
Diffuser Assembly
Â
Cabinet Manual
