Bearon Aquatics: 120V | Ice Eater Replacement Cords

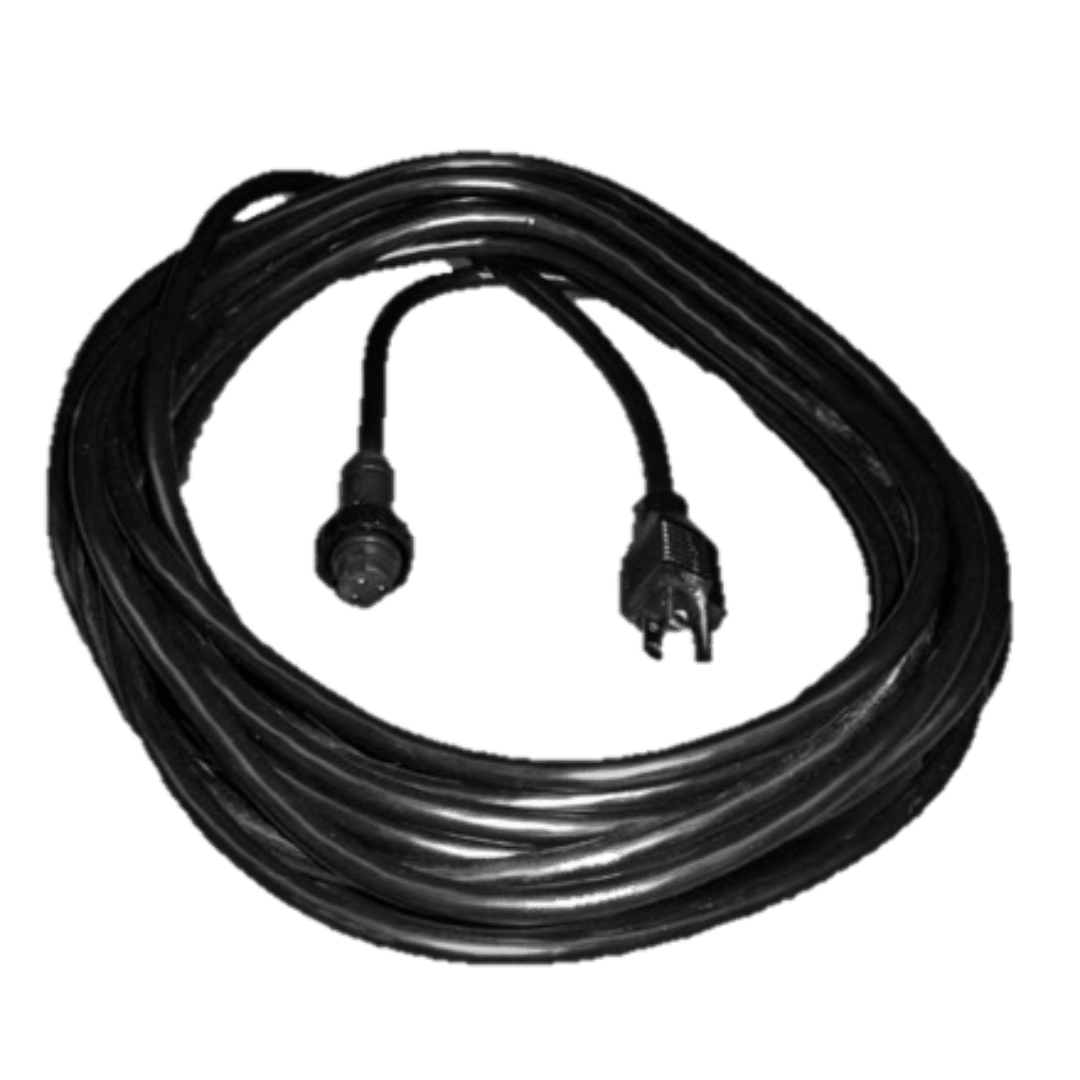

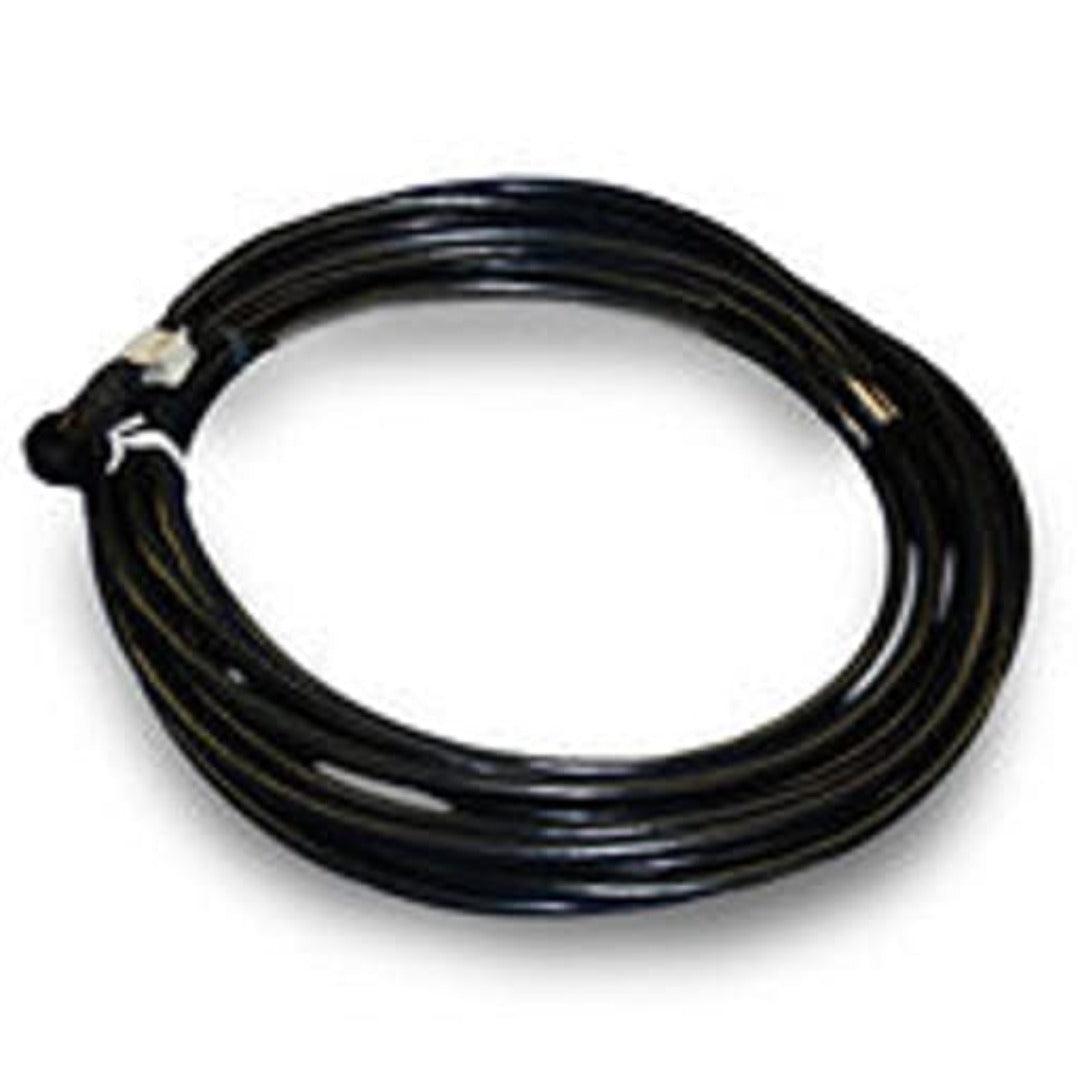

Replacement SJTOW Power Cords for your Ice Eaters and F-Series Aeration Equipment

Product Specifications

SJTOW UL & CSA Approved – Underwater Rated 3-Wire Cable

Potted Quick Disconnect

115V NEMA 5-15P Plug | 230V NEMA 6-15P Plug

16/3 GAUGE WIRE

• Available for Ice Eaters and Decorative Lighting
• The Quick Disconnect Connector has an Outside Diameter of 1 1/8″
• 115V Up to 100′ Long

14/3 GAUGE WIRE

• Available for Ice Eaters, F-Series (12/3 Gauge Predominantly Used between May 2017 – May 2019), and Decorative Lighting
• The Quick Disconnect Connector has an Outside Diameter of 1 1/8″
• 115V Available Up to 150′ Long

12/3 GAUGE WIRE

• Available for F-Series Equipment – Predominantly Used Between May 2017 – May 2019
• The Quick Disconnect Connector has an Outside Diameter of 1 3/8″
• 115V Available Up to 150′ Long

Install Instructions

1. Unplug the Unit From the Power Source
2. Loosen and Remove the Existing Power Cord
3. Take Replacement Power Cord and Run Through the 2-1/2″ Water Intake Hole at the Bottom of the Shroud
4. Apply a Small Pea-Sized Amount of Dielectric Grease to Power Cord Connector
5. Line Up the Pins and Holes From the Power Cord and Connector on the End Bell, and Then Twist it on
   Make Sure to Hand Tighten Only – Do Not Over Tighten – Do Not Use Tools
6. In Order to Prevent the Power Cord from Hitting the Propeller, Pull Out Additional Slack Through the 2 1/2″ Water Intake Hole and Secure with Clip and Screw
   One Additional measure you can take is to secure the power cord to a bracket with a zip tie and then secure with the clip and screw on the shroud.
7. Spin the propeller by hand after you complete the install to make sure the propeller does not hit the cord.
