Easy Pro: Pump Vault | 4 Sizes Available

Pro-Series pump vault that houses pumps in Just-A-Falls water reservoir to help make routine maintenance and service easier. Built heavy duty to withstand the pressure of being buried under rock. Can be used in small Just-A-Falls or custom built fountain basins.

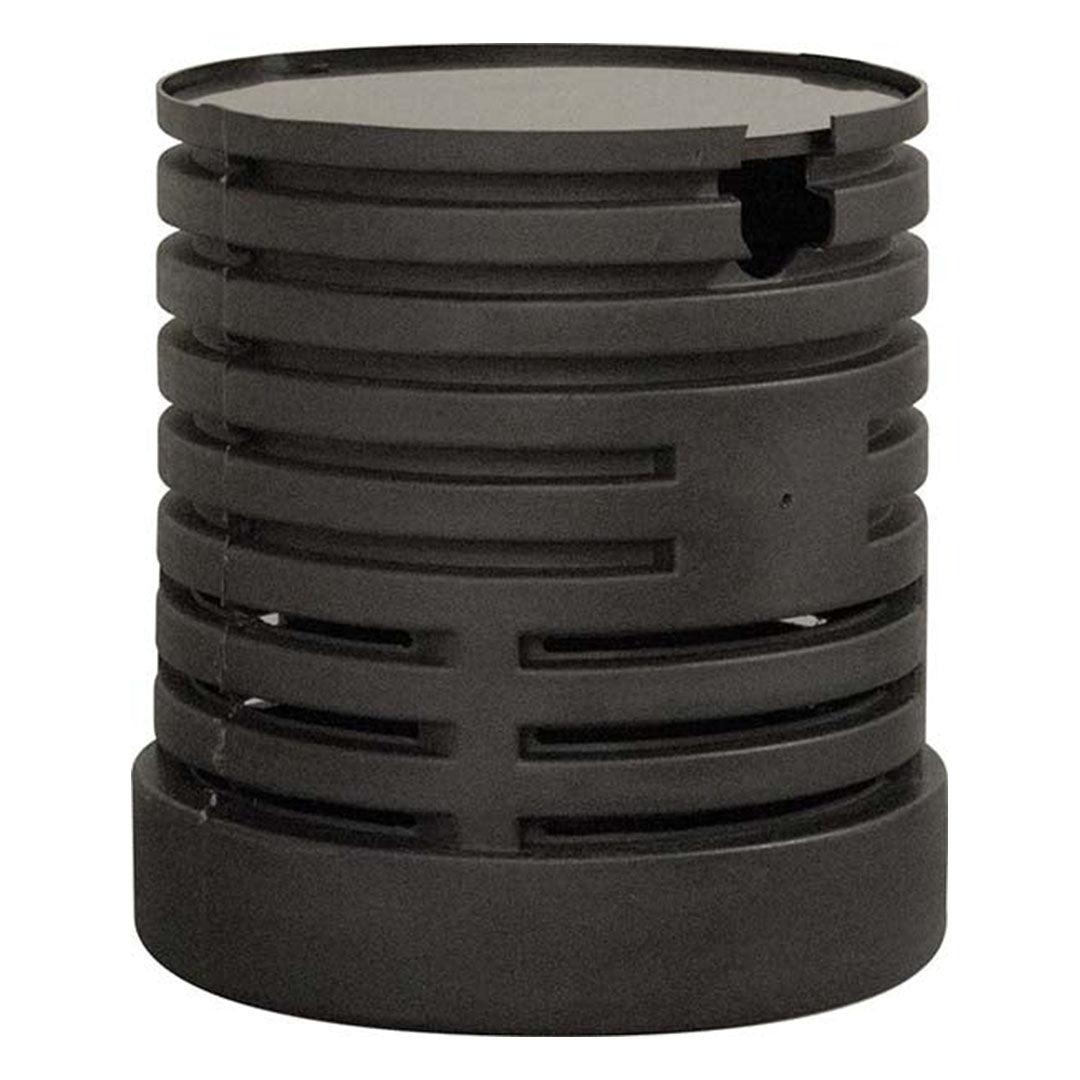

JAFT Miniature Pump Vault

• Roto-molded for excellent strength
• Can be used with JAFME extension
• Ideal for use with mag drive pumps
• Can be used in small Just-A-Falls or custom built fountain basins
• Max flow rate: 50 gpm / 3,000 gph
• Dimensions: 13"D x 14 1/2"H
• 5 lbs

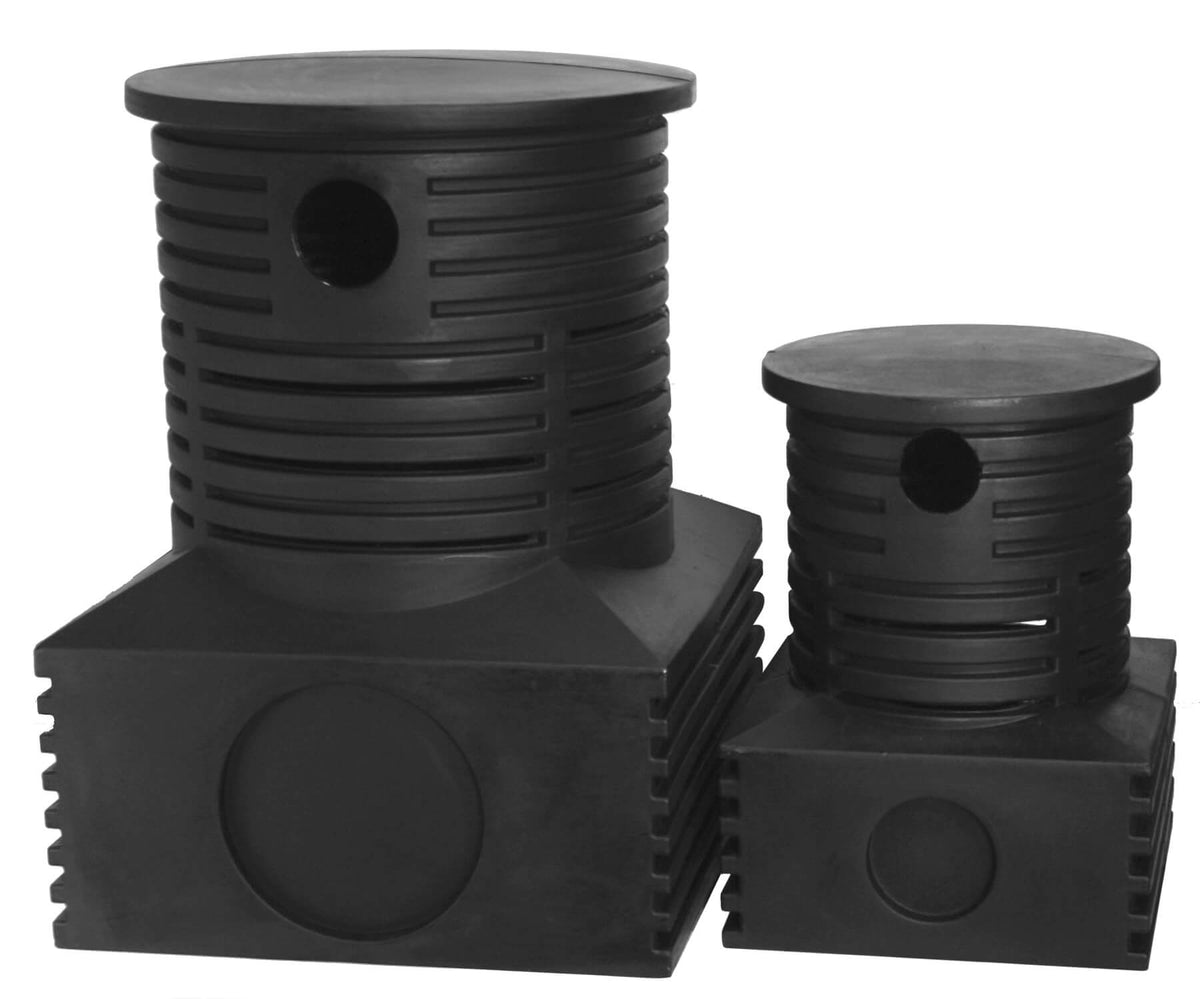

JAFM Small Pump Vault

• Built heavy duty to withstand the pressure of being buried under rock
• The slots cut in the sides allow water into the pump
• Can be used with JAFME extensions that allow for deeper reservoirs
• 30″ long intake tubes are available (JAFM30) to increase flow capacity up to 10,000 gph from 7,500 gph standard
• Max Flow Rate: 125 gpm / 7,500 gph
• 16"W x 16"L x 22"H
• 15 lbs

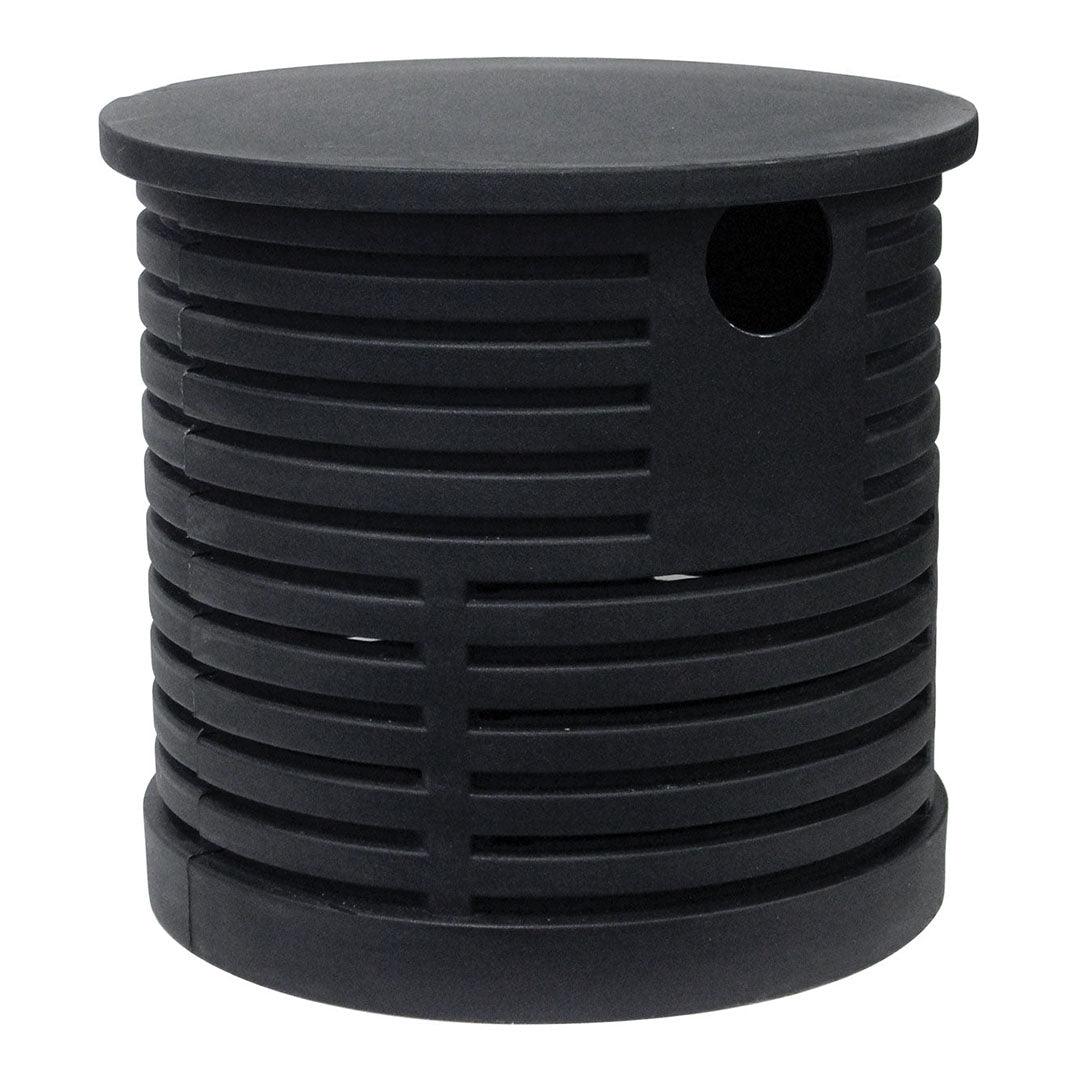

JAFL  Medium Pump Vault

• Wide diameter pump vault
• Roto-molded for excellent strength

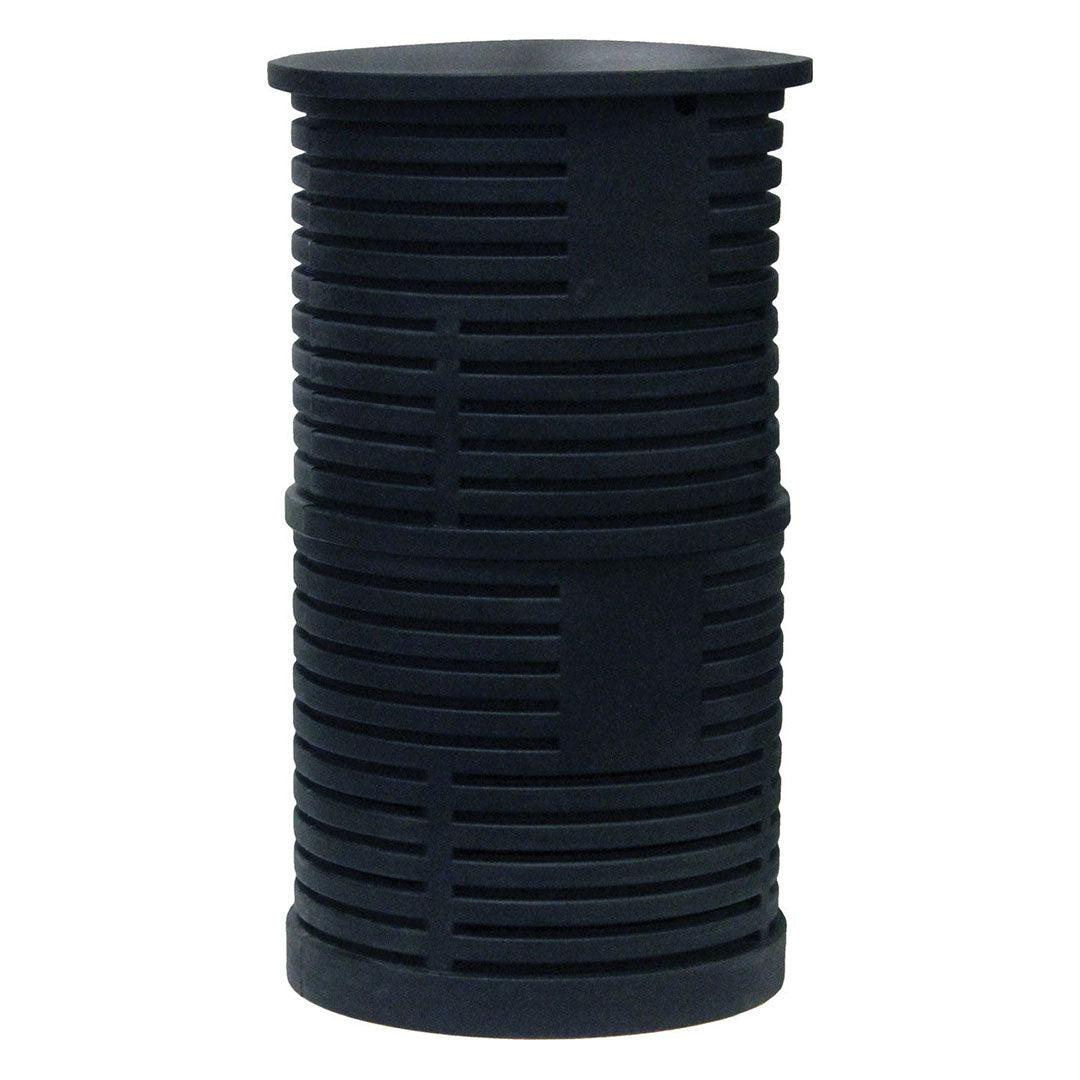

• Can be used with JAFVE extension
• Ideal for use with mag drive pumps

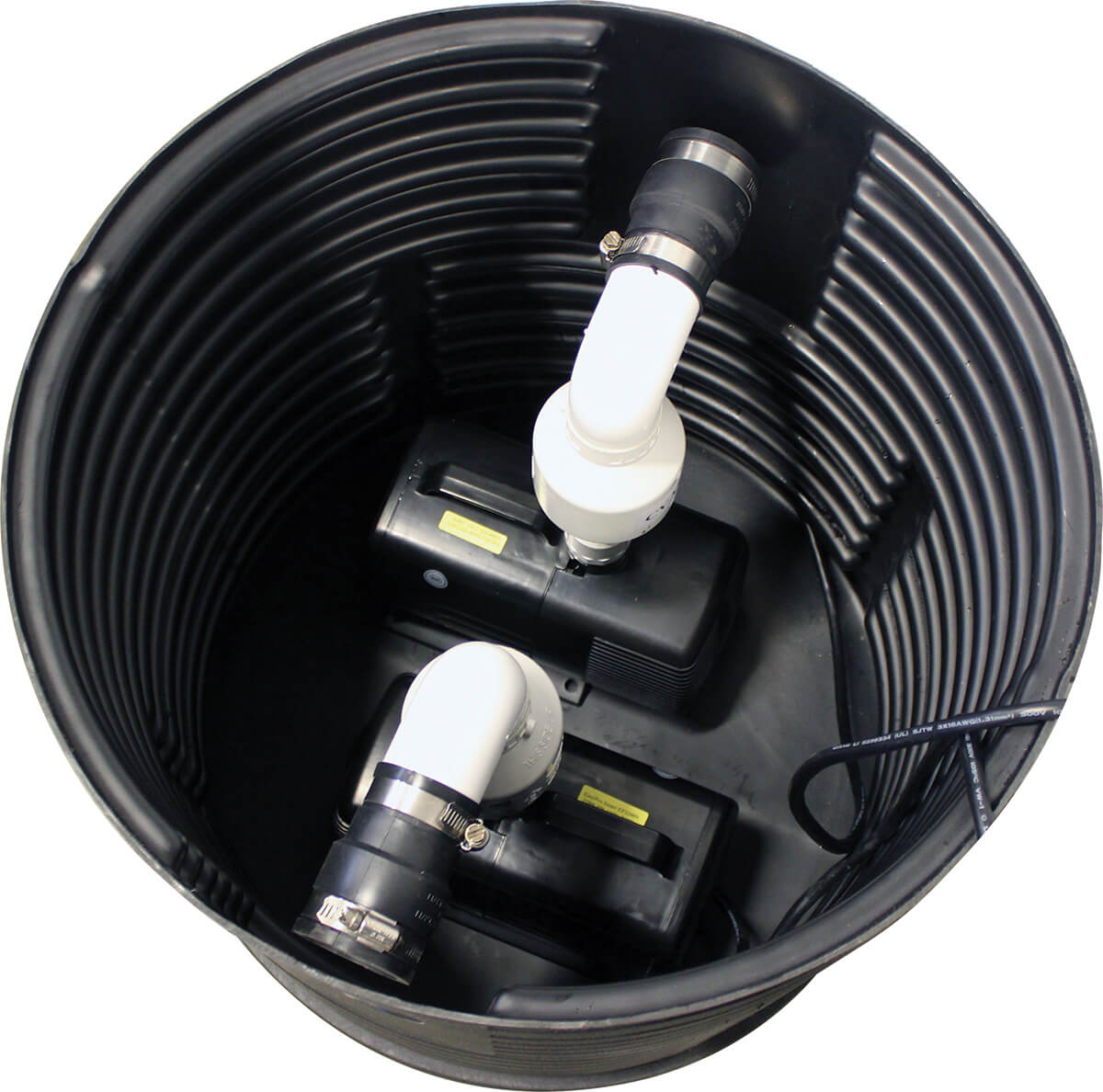

• Large diameter pump vault can fit multiple mag drive pumps for high flow features.
• Max Flow Rate: 167 gpm / 10,000 gph
• 20"W x 20"H
• 12 lbs

JAFV  Large Pump Vault

• Built heavy duty to withstand the pressure of being buried under rock
• The slots cut in the sides allow water into the pump

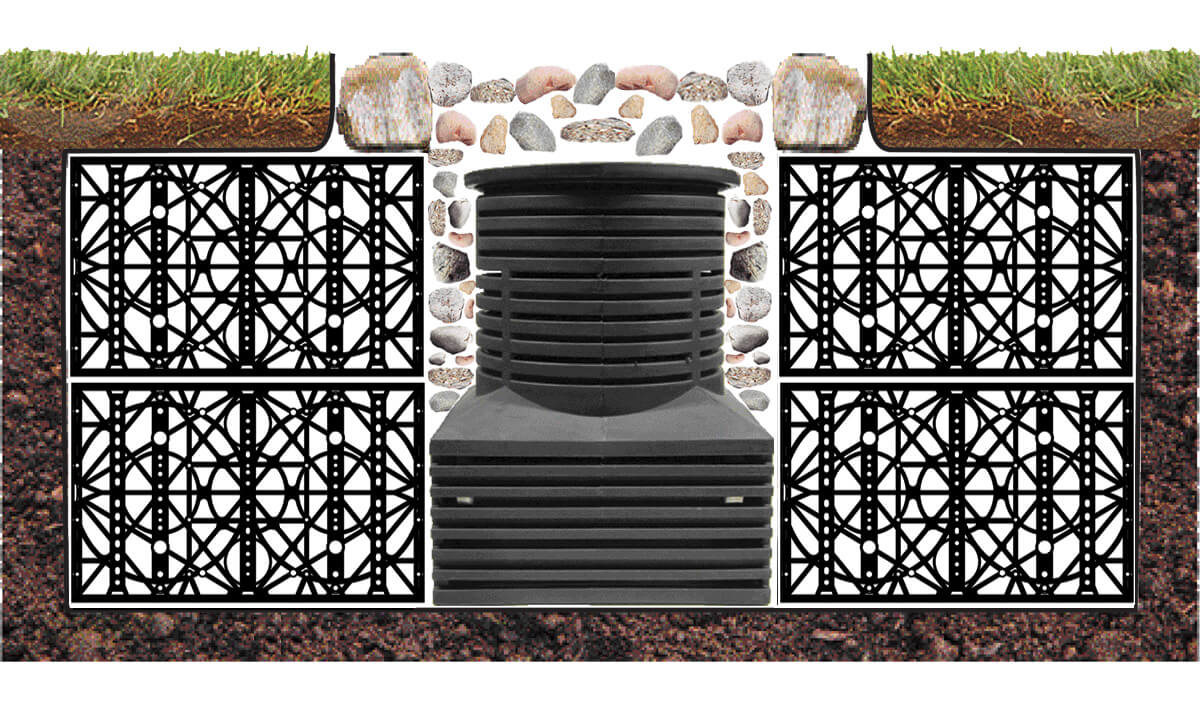

• Can be used with JAFVE extension(s) that allow for deeper reservoir
• 30″ long intake tubes are available to increase flow capacity up to 23,000 gph from 18,000 gph standard
• Max Flow Rate: 300 gpm / 18,000 gph
• 24"W x 24"L x 32"H
• 52 lbs

JAFT-JAFL Instructions
