Description

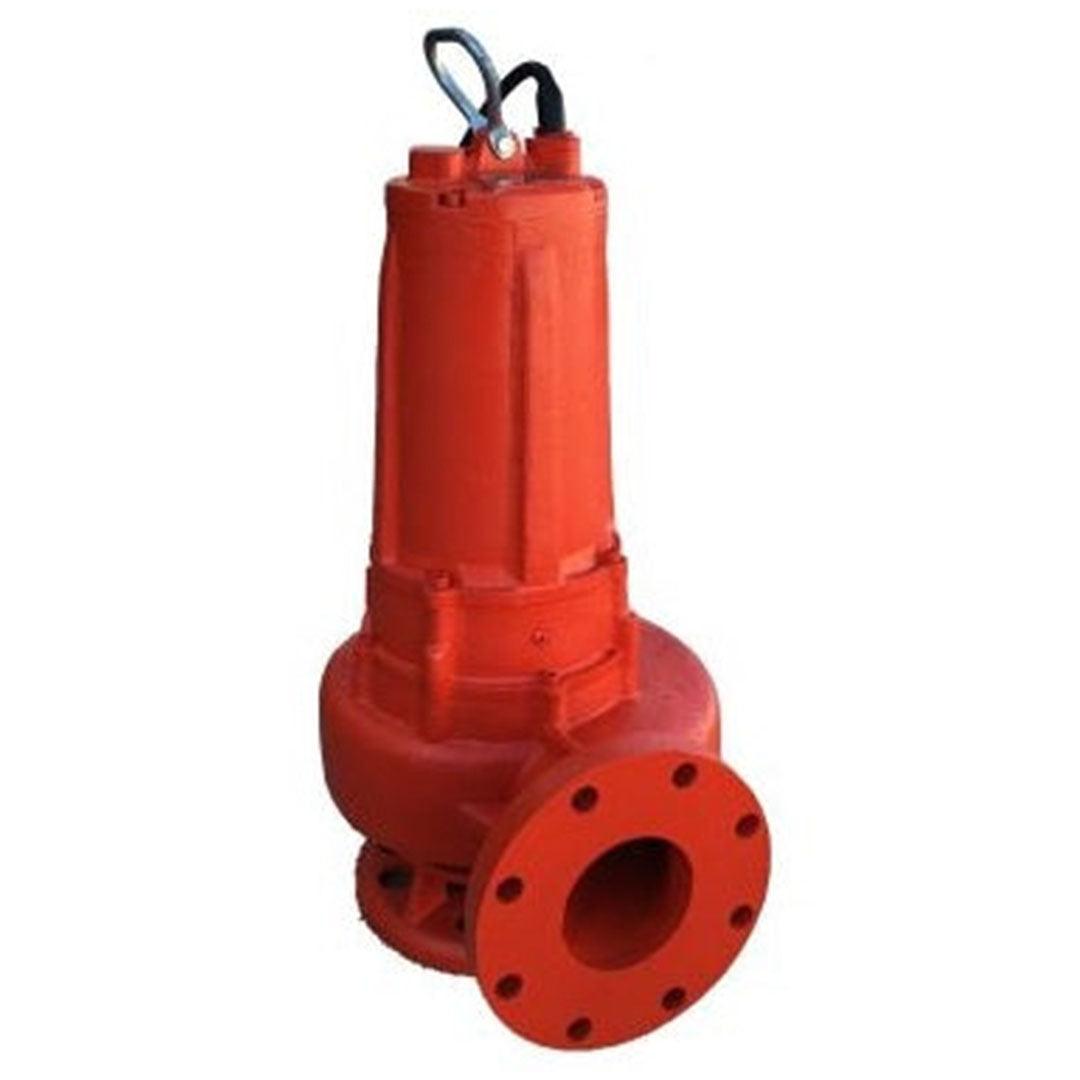

100WQ Sewage Pumps Series - 230V
Application:
These heavy-duty sewage pumps are self-contained and recommended for use in a sump or basin, application: sewage, high-capacity sump, effluent.
Key Features:
- 3HP and 5HP, 208-230V/460V Dual Voltage
- Class 30 cast iron construction
- 4” 125lb. ANSI Flange discharge, Horizontal
- Dual mechanical, 300 series Stainless Steel Parts
- Oil-filled motor with automatic reset overload provides safe operation
- Ball bearing construction for long life
Technical Data:
-
DISCHARGE - 4" 125lb ANSI flange, Horizontal
-
SOLIDS HANDLING 3" (76 mm)
-
LIQUID TEMPERATURE 104 Degrees F. Contiuous, 140 Degrees F. Intermittent
-
MOTOR HOUSING Cast Iron
- VOLUTE Cast Iron
- SEAL PLATE Cast Iron
-
IMPELLER Cast Iron, 2-Vane, open, dynamically balanced for mechanical protection
-
SHAFT Corrosion resistance stainless steel, threaded design.
-
BEARING (UPPER & LOWER) Single Row, Ball, Oil Lubricated
-
HARDWARE 300 Series Stainless Steel
-
SQUARE RINGS Buna-N
-
POWER CORD 30ft water proof, bare leads
-
DUAL MECHANICAL SEALS:
Stainless steel metal parts, BUNA-N elastomers
Upper Seal: Carbon vs Ceramic
Lower Seal: Silicon Carbide vs Silicon Carbide -
MOTOR (THREE PHASES)
1750 RPM, 60Hz, 208-230/460 Volts, 4 Pole
Build-in Thermal Protector with automatic reset.
Oil Filled, Class B
-
SIZE 17.6" X 17" X 26"
Performance:
| Model | Hp | Volt. Ph |
FLA amps |
Gal/Min @ Total Head in Feet | Shut off |
Weight (lbs) |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 10 | 20 | 30 | 40 | 45 | ||||||
| 100WQ2.2-4P | 3 | 230/460/3 | 9.6/4.8 | 385 | 350 | 285 | 180 | 25 | 42 | 230 | |
| 100WQ3.7-4P | 5 | 230/460/3 | 13/6.5 | 520 | 475 | 390 | 290 | 175 | 110 | 51 | 250 |
