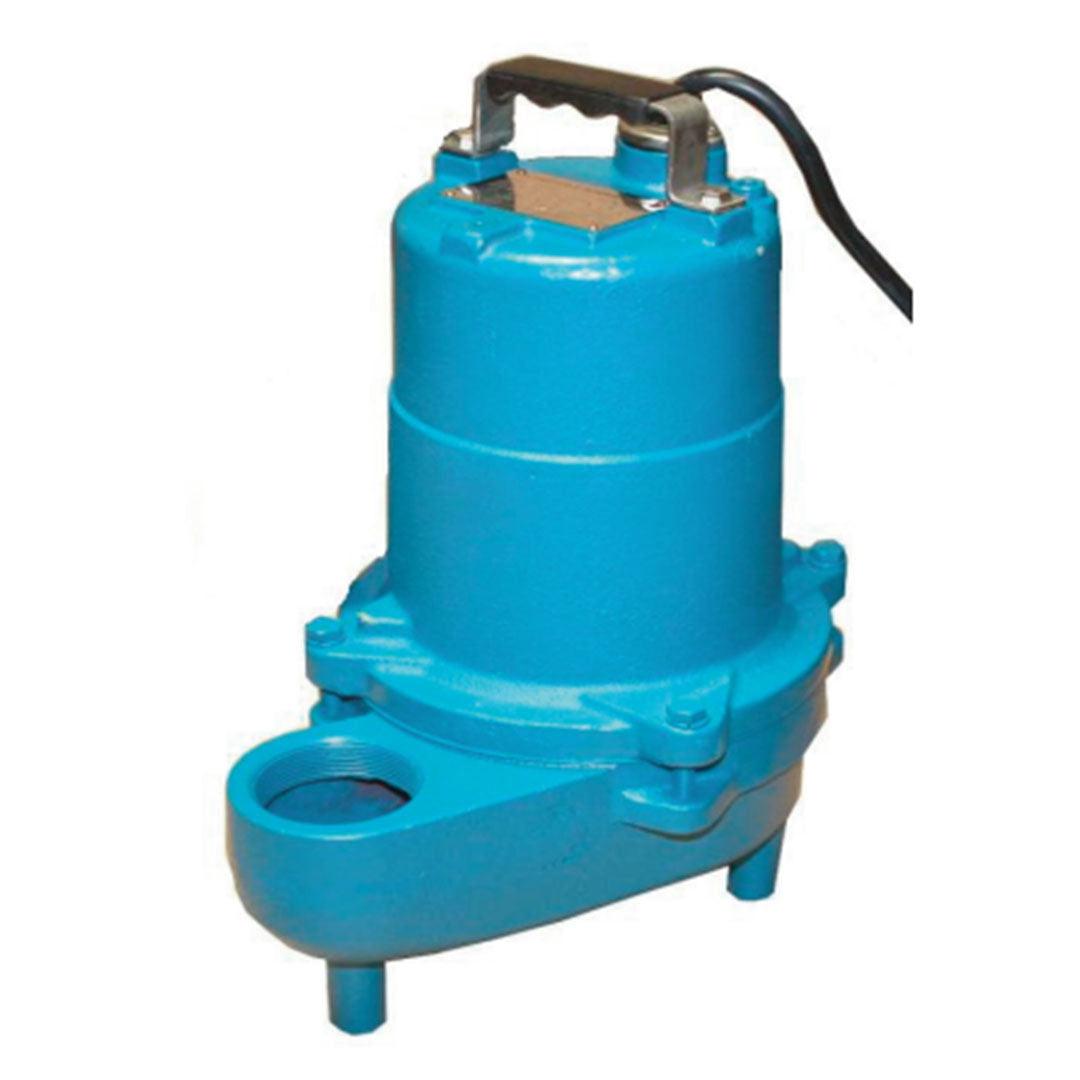

F & Q Pumps: 230V | CFW Sewage Pump Series | 1/2HP
- Free shipping $99+Lower 48 states
- Price Match GuaranteeMatch or beat authorized dealers
- Satisfaction GuaranteedWe will make it right
- Secure checkoutShop Pay, PayPal & cards
Not sure which size you need?
Our experts are available to help! Call us to pick the right model, horsepower and cord length.
Mon–Fri 8am–6pm
Description
CFW Sewage Pump Series - 230V
Application:
These heavy-duty sewage pumps are self-contained and recommended for use in a sump or basin, application: sewage, high-capacity sump, effluent.
Key Features:
- 4/10HP and 1/2HP
- Class 30 cast iron construction
- 2”NPT discharge, Vertical
- Single mechanical, Silicon Carbide, 300 series Stainless Steel Parts
- Oil-filled motor with automatic reset overload provides safe operation
- Ball bearing construction for long life
- Piggy-back style float switch for automatic operation
(Optional, Model "A")
Technical Data:
-
DISCHARGE - 2" NPT. Vertical
-
SOLIDS HANDLING 2" (51mm)
-
LIQUID TEMPERATURE 140 Degrees F. Contiuous
-
MOTOR HOUSING Cast Iron
- VOLUTE Cast Iron
- SEAL PLATE Cast Iron
-
IMPELLER Cast Iron
CFW40/50: 2 Vane, open
CFW50V: 10 vane, vortex -
SHAFT Stainless Steel
-
BEARING (UPPER & LOWER) Single Row, Ball, Oil Lubricated
-
HARDWARE 300 Series Stainless Steel
-
SQUARE RINGS Buna-N
-
POWER CORD 20ft quick disconnect cord w/plug on 230 volt, pressure grommet for sealing and strain relief. U/L and CSA listed 14AWG Type SJTOW
-
MOTOR (SINGLE PHASE)
1750 RPM, 60Hz, 230 Volts
NEMA L Includes Overload Protection In The Motor.
Oil Filled, Class B
Permanent Split Capacitor -
SIZE 11" X 8" X 15"
Performance:
| Model | Hp | Volt. Ph |
FLA amps |
Gal/Min @ Total Head in Feet | Shut off |
Weight (lbs) |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 5 | 10 | 15 | 20 | 25 | ||||||
| CFW40A | 4/10 | 115/1 | 12.0 | 135 | 125 | 110 | 85 | 50 | 5 | 25.5 | 48 |
| CFW40M | 4/10 | 115/1 | 12.0 | 135 | 125 | 110 | 85 | 50 | 5 | 25.5 | 47 |
| CFW50A | 1/2 | 115/1 | 12.0 | 140 | 130 | 115 | 90 | 55 | 25 | 49 | |
| CFW50M | 1/2 | 115/1 | 12.0 | 140 | 130 | 115 | 90 | 55 | 25 | 48 | |
| CFW50VA | 1/2 | 115/1 | 12.0 | 130 | 120 | 95 | 65 | 23 | 23 | 50 | |
| CFW50VM | 1/2 | 115/1 | 12.0 | 130 | 120 | 95 | 65 | 23 | 23 | 49 | |
| CFW502VA | 1/2 | 230/1 | 5.5 | 130 | 120 | 95 | 65 | 23 | 23 | 50 | |
| CFW502VM | 1/2 | 230/1 | 5.5 | 130 | 120 | 95 | 65 | 23 | 23 | 49 | |
