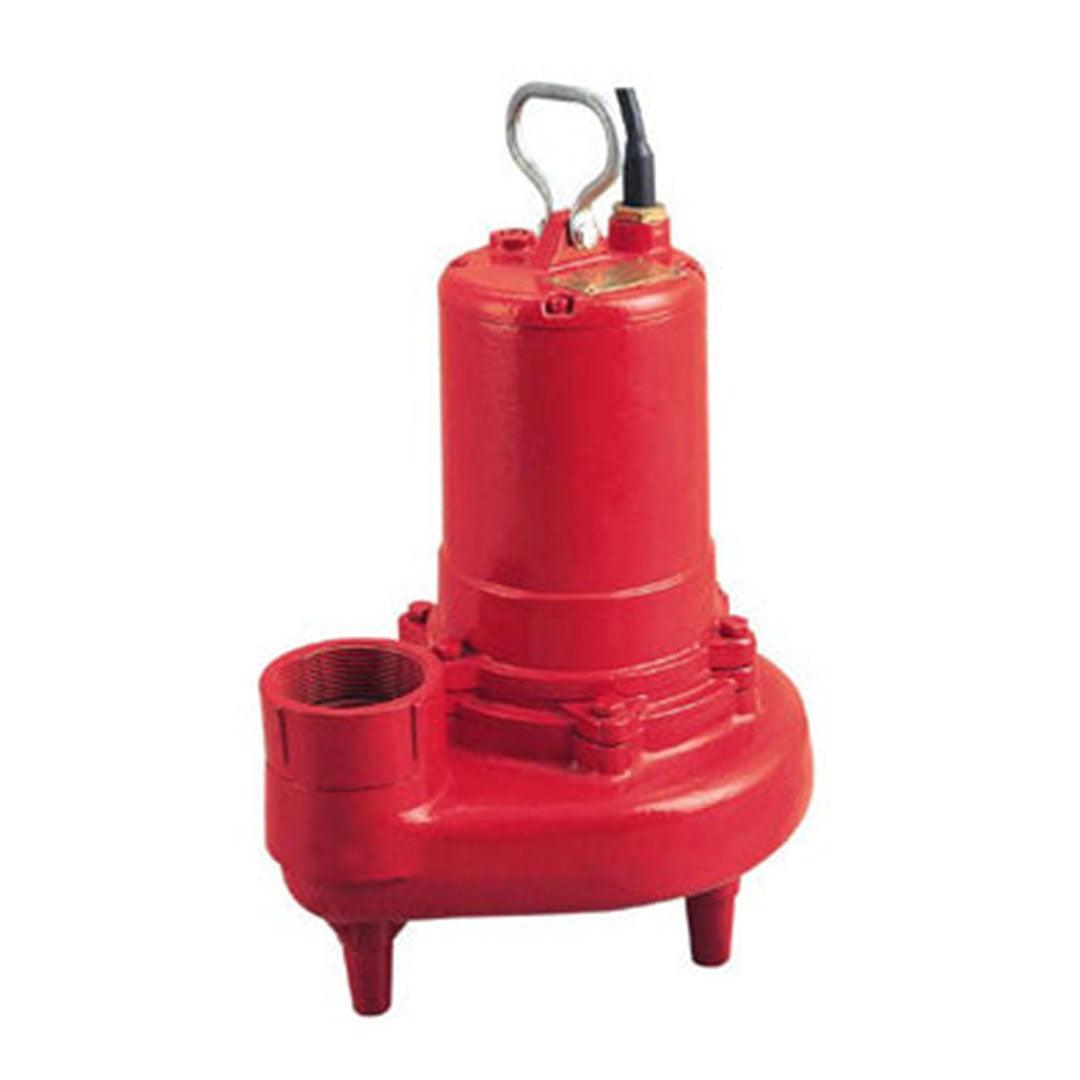

F & Q Pumps: 115V | Sewage Pump Series | 1/2HP | 3/4HP | 1HP | 1-1/2HP
- Free shipping $99+Lower 48 states
- Price Match GuaranteeMatch or beat authorized dealers
- Satisfaction GuaranteedWe will make it right
- Secure checkoutShop Pay, PayPal & cards
Not sure which size you need?
Our experts are available to help! Call us to pick the right model, horsepower and cord length.
Mon–Fri 8am–6pm
Description
80WQ-4P Sewage Pumps Series - 115V
Application:
These heavy-duty sewage pumps are self-contained and recommended for use in a sump or basin, application: sewage, high-capacity sump, effluent.
Key Features:
- 1/2HP, 3/4HP, 1HP, 1.5HP
- Class 30 cast iron construction
- 3”NPT discharge, Vertical
- Dual mechanical, 300 series Stainless Steel Parts
- Oil-filled motor with automatic reset overload provides safe operation
- Ball bearing construction for long life
Technical Data:
-
DISCHARGE - 3" NPT. Vertical
-
SOLIDS HANDLING 2" (51mm)
-
LIQUID TEMPERATURE 104 Degrees F. Contiuous, 140 Degrees F. Intermittent
-
MOTOR HOUSING Cast Iron
- VOLUTE Cast Iron
- SEAL PLATE Cast Iron
-
IMPELLER Cast Iron, 2-Vane, open, dynamically balanced for mechanical protection
-
SHAFT Corrosion resistance stainless steel, threaded design.
-
BEARING (UPPER & LOWER) Single Row, Ball, Oil Lubricated
-
HARDWARE 300 Series Stainless Steel
-
SQUARE RINGS Buna-N
-
POWER CORD 30ft Cord, w/plug on 115V & 230Vt, pressure grommet for sealing and strain relief. U/L and CSA listed 14AWG Type SOOW
-
DUAL MECHANICAL SEALS:
Stainless steel metal parts, BUNA-N elastomers
Upper Seal: Carbon vs Ceramic
Lower Seal: Silicon Carbide vs Silicon Carbide -
MOTOR (SINGLE PHASE and THREE PHASES)
1750 RPM, 60Hz, 115/230 Volts, 4 Pole
NEMA L Includes Overload Protection In The Motor.
Oil Filled, Class B
Permanent Split Capacitor -
SIZE 13.4" X 11.7" X 20"
Performance:
| Model | Hp | Volt. Ph |
FLA amps |
Gal/Min @ Total Head in Feet | Shut off |
Weight (lbs) |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 10 | 15 | 20 | 25 | 30 | ||||||
| 80WQ0.37-4P | 1/2 | 115/230/1 | 8/4 | 198 | 140 | 65 | 18 | 95 | |||
| 80WQ0.55-4P | 3/4 | 115/230/1 | 11/5.5 | 250 | 210 | 140 | 60 | 23 | 97 | ||
| 80WQ0.75-4P | 1 | 115/230/1 | 13/6.5 | 264 | 220 | 150 | 66 | 17 | 26 | 100 | |
| 80WQ1.1-4P | 1.5 | 115/230/1 | 16/8 | 295 | 280 | 180 | 135 | 66 | 40 | 32 | 102 |
80WQ-4P Sewage Pumps Series Brochure
