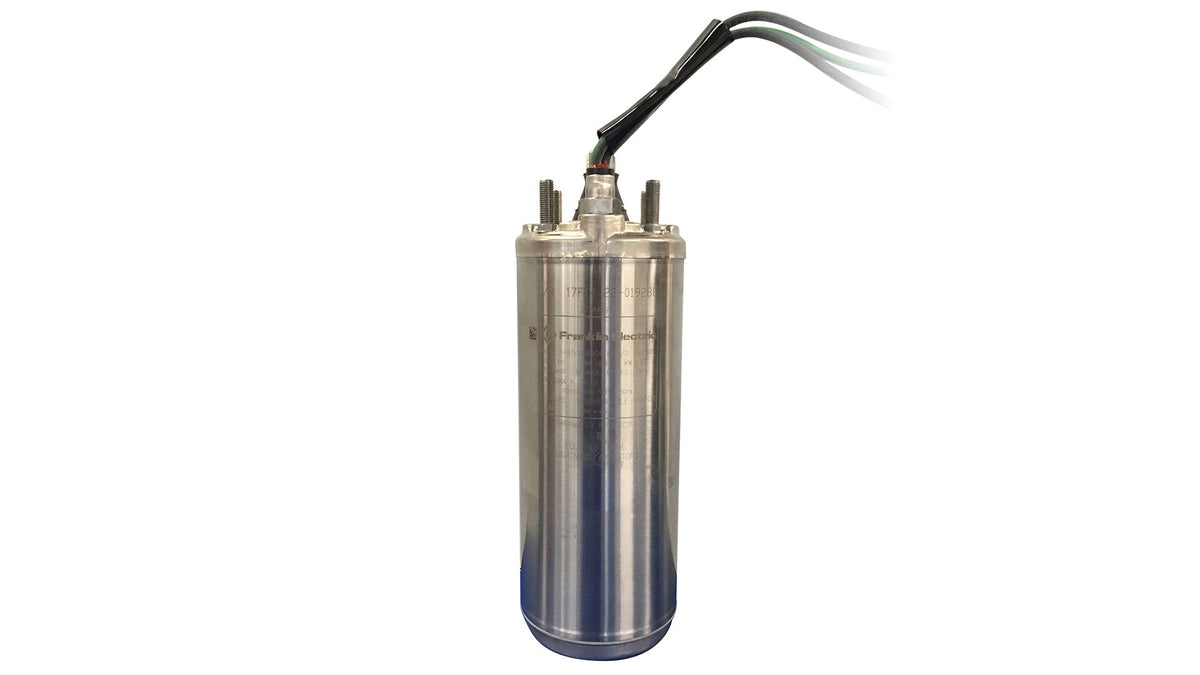

Scott Aerator: Replacement Motor | 1/3-3 HP, 115V-460V, incl. 3-Phase
- Free shipping $99+Lower 48 states
- Price Match GuaranteeMatch or beat authorized dealers
- Satisfaction GuaranteedWe will make it right
- Secure checkoutShop Pay, PayPal & cards
Not sure which size you need?
Our experts are available to help! Call us to pick the right model, horsepower and cord length.
Mon–Fri 8am–6pm
Description
Scott Aerator replacement electric motors are submersible motors with corrosion-resistant stainless steel exteriors, used to rebuild Scott Aerator fountains and aerators. Choose the horsepower, voltage and phase that match your unit.
Features
- All-stainless-steel exterior and stainless steel splined shaft
- Hermetically sealed windings with an anti-track, self-healing resin system
- Water-lubricated design with filter check valve, Kingsbury-type thrust bearing and pressure-equalizing diaphragm
- Built-in lightning arrestors on all single-phase models and on 200V and 230V three-phase models
- NEMA mounting dimensions; UL 778 recognized, CSA certified and ANSI/NSF 61 certified
- Supplied with an 18-inch motor lead
- 1-year warranty
Models
| SKU | HP | Voltage | Phase | Notes |
|---|---|---|---|---|
| 20001.3 | 1/3 HP | 115V | Single-phase | Listed by Scott Aerator |
| 20001.32 | 1/3 HP | 230V | Single-phase | Listed by Scott Aerator |
| 20003 | 1/2 HP | 460V | Three-phase | Three-phase; confirm details with Scott Aerator |
| 20003.751 | 3/4 HP | 115V | Single-phase | Listed by Scott Aerator |
| 20003.75 | 3/4 HP | 230V | Single-phase | Listed by Scott Aerator |
| 20004.1 | 1 HP | 115V | Single-phase | Listed by Scott Aerator |
| 20004.3P | 1 HP | 200V | Three-phase | Three-phase; confirm details with Scott Aerator |
| 20004 | 1 HP | 230V | Single-phase | Listed by Scott Aerator |
| 20004.3 | 1 HP | 460V | Three-phase | Three-phase; confirm details with Scott Aerator |
| 20003.25 | 1-1/2 HP | 200V | Three-phase | Three-phase; confirm details with Scott Aerator |
| 20001 | 1-1/2 HP | 230V | Single-phase | Listed by Scott Aerator |
| 20003.2 | 1-1/2 HP | 230V | Three-phase | Three-phase; confirm details with Scott Aerator |
| 20003.4 | 1-1/2 HP | 460V | Three-phase | Three-phase; confirm details with Scott Aerator |
| 20006.2 | 2 HP | 200V | Three-phase | Three-phase; confirm details with Scott Aerator |
| 20006.1 | 2 HP | 230V | Three-phase | Three-phase; confirm details with Scott Aerator |
| 20003.5 | 3 HP | 200V | Three-phase | Three-phase; confirm details with Scott Aerator |
| 20003.3 | 3 HP | 230V | Single-phase | Listed by Scott Aerator; 3-wire, needs control box |
| 20003.33 | 3 HP | 230V | Three-phase | Three-phase; confirm details with Scott Aerator |
| 20003.1 | 3 HP | 460V | Three-phase | Three-phase; confirm details with Scott Aerator |
2 HP and 3 HP single-phase motors are three-wire and need the matching control box; running a motor without the correct control box can cause failure and voids the warranty. Scott Aerator supplies three-phase motors on request.
