Scott Aerator: 230V | Atriarch Fountain | 3/4 HP, 1 HP, 1-1/2 HP, 2 HP, 3 HP | Decorative Pond Fountain

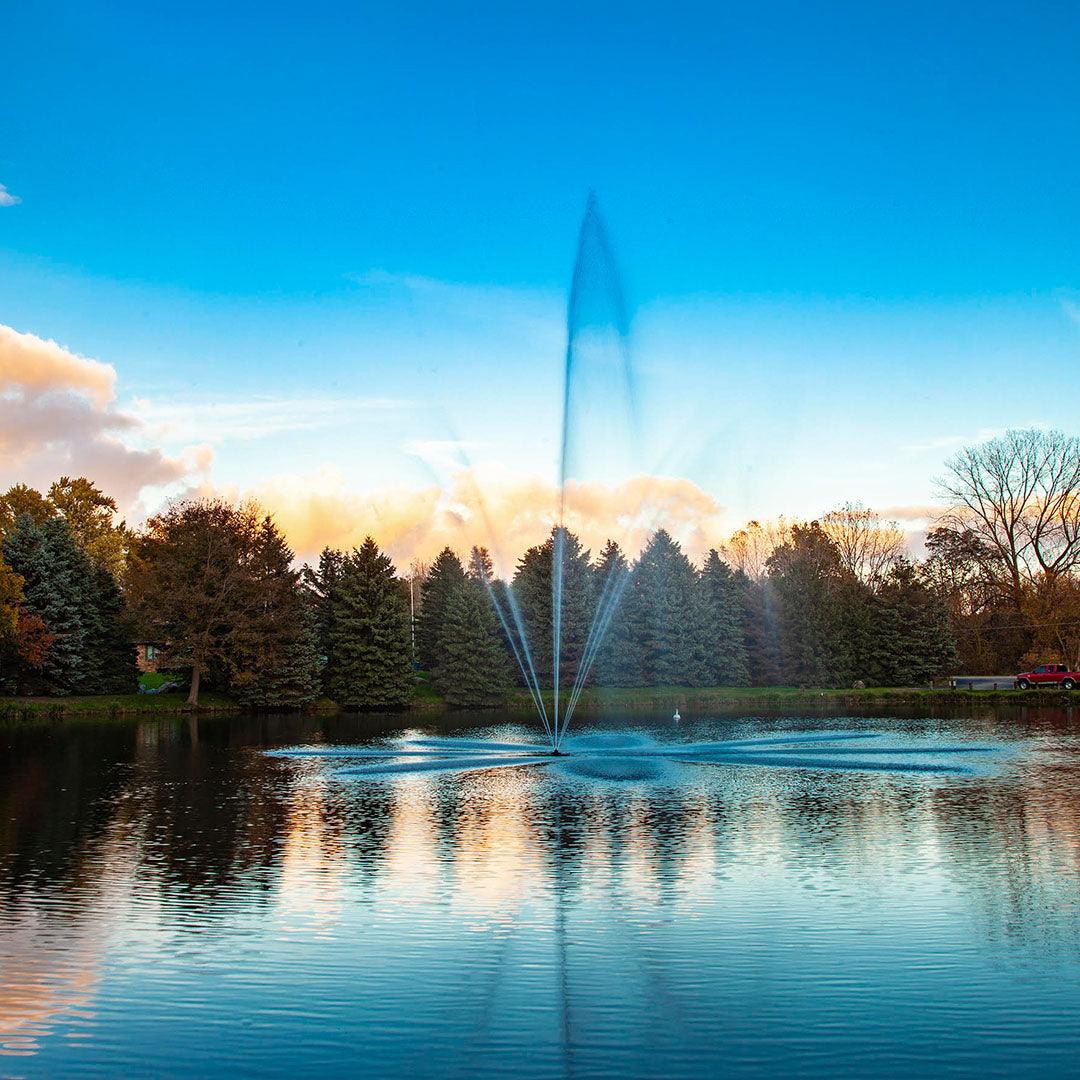

One of the newest additions to the Scott Aerator Company product line, the Atriarch fountain is a lovely addition to any pond or lakescape. The elegant look of the Atriarch, accompanied by the tranquil sound of its cascading water, enhances your outdoor living experience while adding value to your investment.

The vibrant look of the Atriarch is achieved with a solid brass center nozzle surrounded by eight individual brass nozzles, creating a versatile water feature for both residential and commercial use. Engineered for all types of applications, the Atriarch will provide many years of maintenance-free performance.

GFCI required, Please disconnect power when swimmers are present.

No fountain is complete without lights! Add a Scott Aerator LED light kit to your Atriarch below:

Scott Aerator Night Glow Soft White LED kits

Scott Aerator RGB Color-changing LED Kits

1-1/2 HP Atriarch Fountain Specifications

• 230-volt, 1½-hp, oil-free motor.
• 115 gallons-per-minute flow rate.
• Center stream is 40 feet high.
• 8 angled jets spray at 25 feet high.
• Electric power cord provided is 100 feet in length, 10-gauge submersible.
• Electric power cord can be ordered in greater lengths.
• Light sets available at purchase, can also be added later.
• Approved for use in saltwater.
• Two 45-pound weights or concrete blocks required for anchoring (not included).
• Two nylon ropes required for anchoring (not included).
• Designed for 24-hour-per-day operation.
• No maintenance required.
• 38" minimum pond depth required.
• Pond size should be 1/4 acre or larger.
• Motor specs: 60 Hz, single phase, 10.6 amps, 1100 watts.
• 5-year motor warranty.

2 HP Atriarch Fountain Specifications

• 230-volt, 2-hp, oil-free motor.
• 135 gallons-per-minute flow rate.
• Electric power cord provided is 100 feet in length, 10-gauge submersible.
• Electric power cord can be ordered in greater lengths.
• Light sets available at purchase, can also be added later.
• Center stream is 50 feet high.
• 8 angled jets spray at 30 feet high.
• Approved for use in saltwater.
• Two 45-pound weights or concrete blocks required for anchoring (not included).
• Two nylon ropes required for anchoring (not included).
• Designed for 24-hour-per-day operation.
• No maintenance required.
• 38" minimum pond depth required.
• Pond size should be 1/4 acre or larger.
• Motor specs: 60 Hz, single phase, 10 amps, 1500 watts.
• 5-year motor warranty.

3 HP Atriarch Fountain Specifications

• 230-volt, 3-hp, oil-free motor.
• 170 gallons-per-minute flow rate.
• Center stream is 60 feet high.
• Electric cable provided is 100 feet in length, 10-gauge submersible.
• Electric cable can be ordered in greater lengths.
• Light sets available at purchase, can also be added later.
• Approved for use in salt water.
• Two 55-pound weights or concrete blocks required for anchoring (not included).
• Two nylon ropes required for anchoring (not included).
• Designed for 24-hour-per-day operation.
• No maintenance required.
• 60" minimum pond depth required.
• Pond size should be 1/4 acre or larger.
• Motor specs: 60 Hz, single phase, 13.3 amps, 2200 watts.
• 5-year motor warranty.
• ARL tested and approved to be in compliance with the applicable requirements of UL and the National Electric Code as complete packages.

***Please consult the chart below PRIOR to purchase to verify the correct voltage motor for your needs.***
