Scott Aerator: Solar Boilermaker Surface Aerator | 3/4HP | 100V | 3PH | 4 Panel

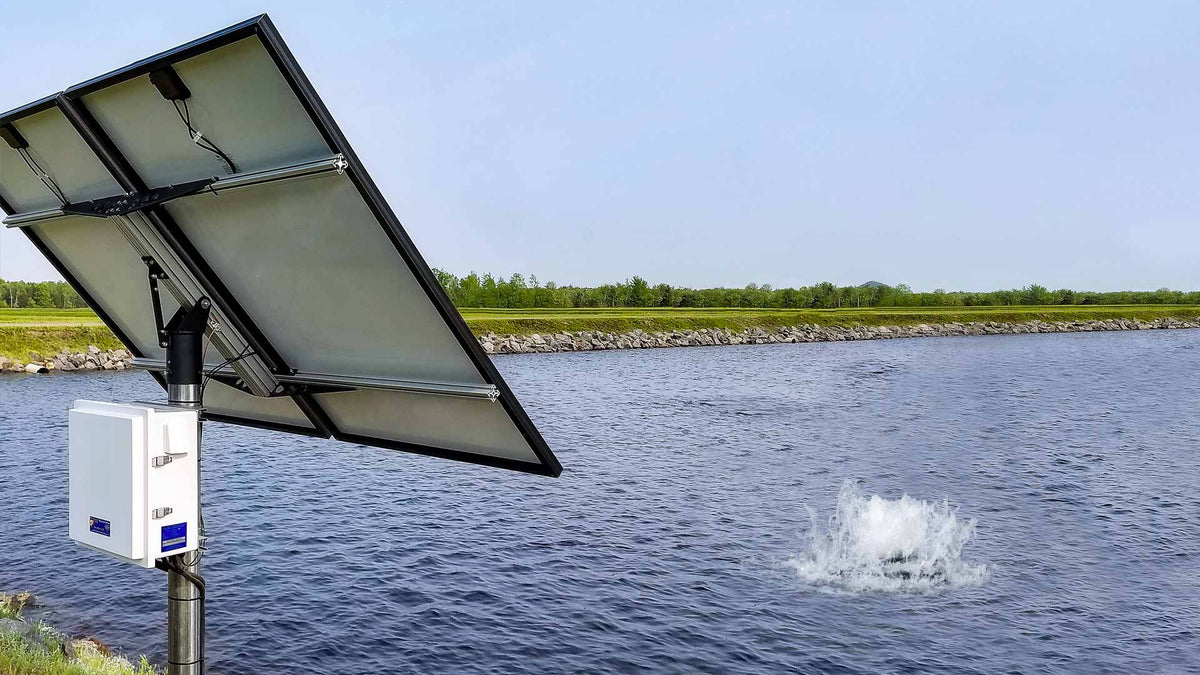

The Scott Aerator Solar Boilermaker (4-panel) brings surface aeration to large ponds with no electrical service. Its 3/4 HP variable-speed, submersible Franklin Electric induction motor moves up to 300 gallons per minute, creating strong surface currents that add oxygen, break down surface algae and clear floating debris. More oxygen also speeds the breakdown of decaying matter, which means less muck over time.

Made for daytime aeration, the unit powers up with the sun, runs at variable speed as light changes, and shuts down after dark, with no batteries to maintain. The stainless steel, oil-free motor needs no routine maintenance. In winter, leave the aerator in the water, turn off its power, and restore power in spring; the components are built to withstand sub-zero conditions.

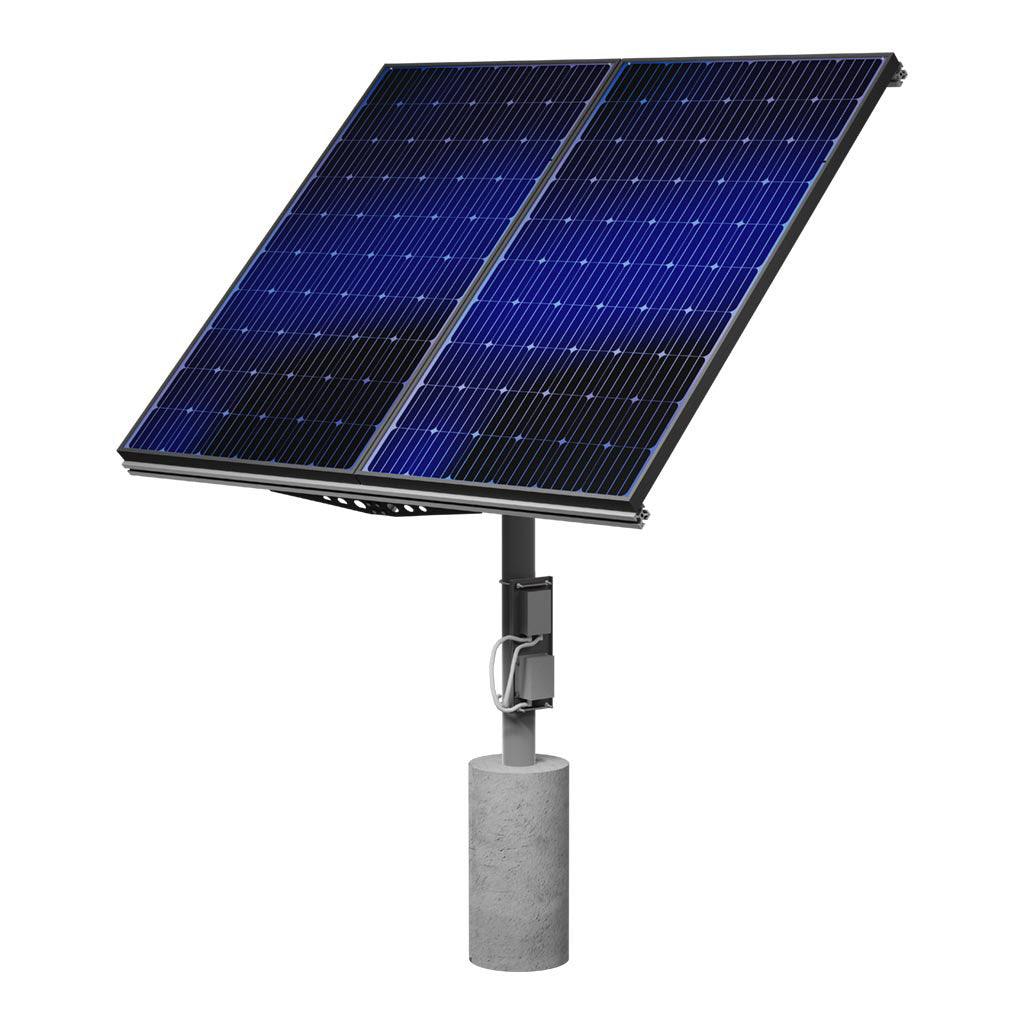

The system includes the Boilermaker aerator, four solar panels with frame, disconnect box, Fhoton solar drive (inverter) and wiring components. You supply the vertical pole and concrete footing for the panels, and two anchor ropes with weights or tethers for the aerator. Made in the USA for fresh or salt water. Disconnect power when swimmers are present.

Specifications

• Model: 15101
• Motor: 3/4 HP, 100V, three-phase, 60 Hz, 8.3 amps
• Flow rate: 300 gallons per minute
• Solar: four 340 W, 60-cell monocrystalline panels (41" x 69" each)
• Power cord: 70 ft, 12-gauge submersible (standard)
• Minimum pond depth: 44"
• Anchoring: two 30 lb weights or concrete blocks (not included)
• Warranty: 5-year motor
