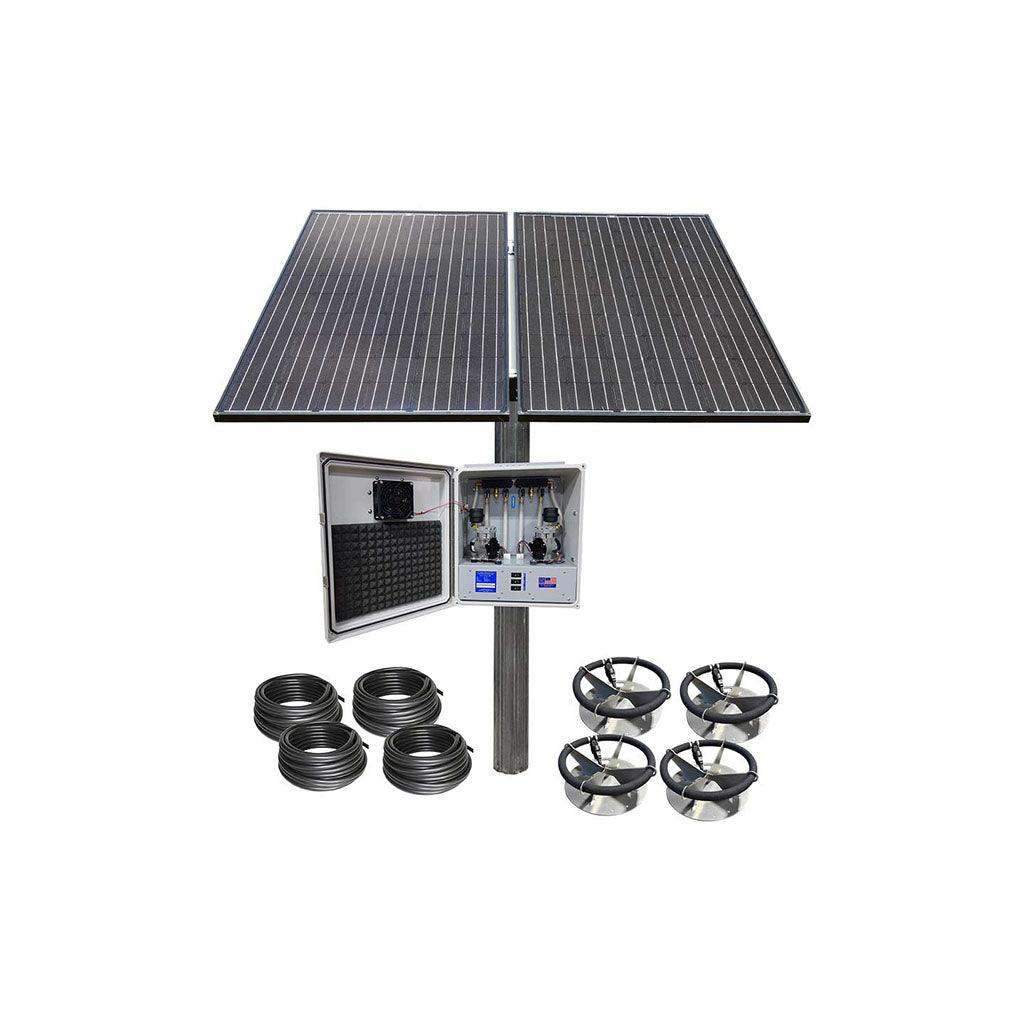

Scott Aerator: Solar Sub-Surface Aeration System | Extra-Large (XL) | Up to 5 Acres

The Scott Aerator Solar Sub-Surface Aeration System Extra-Large (XL) delivers diffused bottom aeration without batteries, AC wiring or the ongoing cost of grid power, and keeps working in cloudy conditions. It is sized for ponds up to 5 acres.

Two high-efficiency, brushless, rocking-piston compressors, managed by a digital motor controller, offer over three times the system life of brushed permanent-magnet motors. The pole-mount enclosure has an integrated sound reduction system (less than 67 dB at 6 ft), a washable and reusable intake filter, liquid-filled pressure gauges, stainless steel locking hardware and electronic over-current protection. Each unit is factory tested and built from American-made components.

Applications include ponds and lakes, de-icing, golf courses, fish farms, marinas, parks, livestock watering, storm water, habitat management and weed and algae control. A vertical 3" (3-1/2" OD) galvanized pole about 10 ft long is required for mounting and is not included.

Specifications

• Model: 45100
• Pond size: up to 5 acres
• Solar: two 300 W high-efficiency modules (39" x 65" each) with adjustable top-of-pole racking
• Compressors: 2 brushless rocking-piston
• Airflow: 5 SCFM at 25 psi, rated 30+ ft deep
• Airline: two 3/8" x 300 ft
• Diffusers: 4 self-weighted
• Valves: 4 full-flow brass ball valves, brass automatic pressure relief valve
• Noise: under 67 dB at 6 ft
• Ventilation: 110 CFM automatic active ventilation
• Warranty: 2 years on all components
