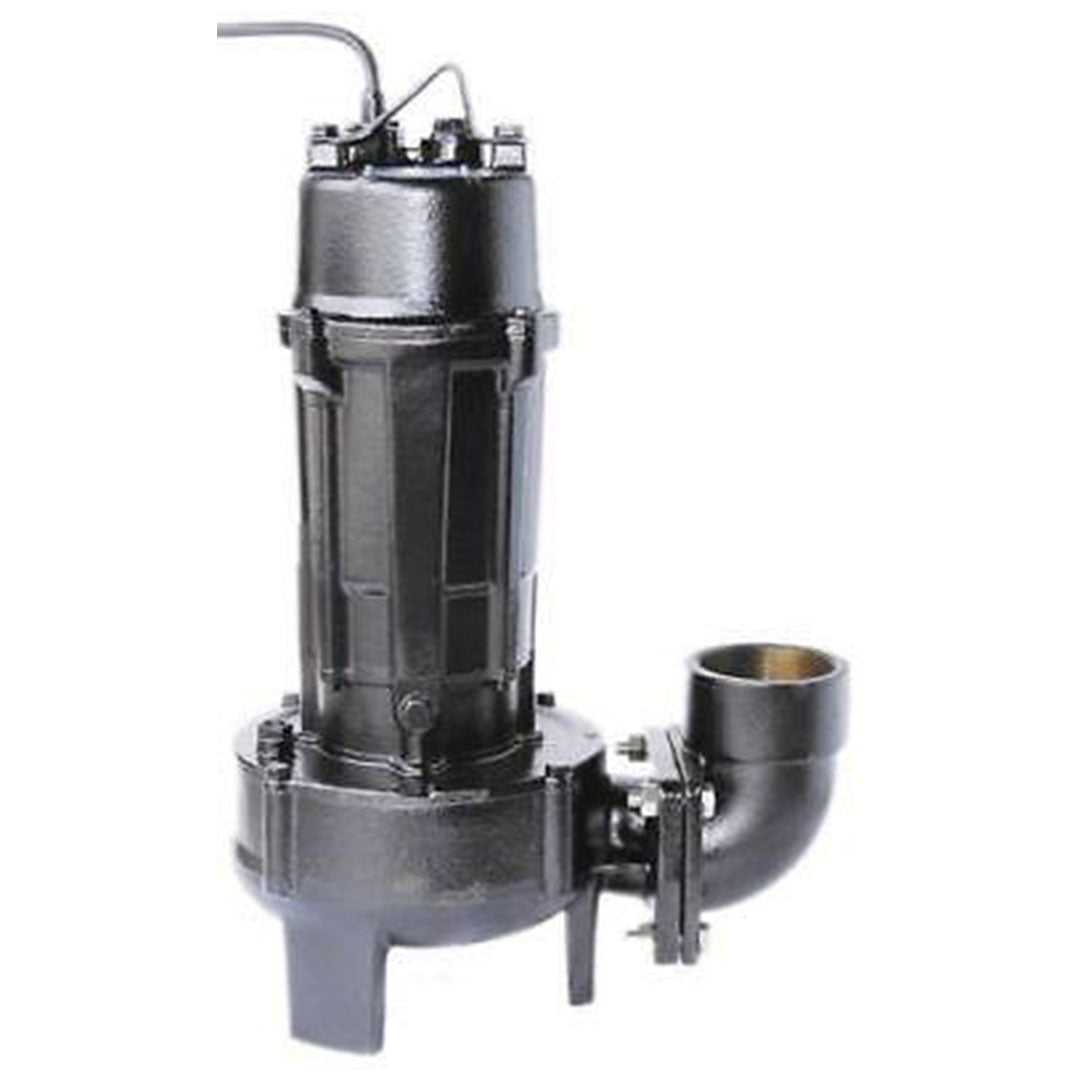

ShinMaywa: 230V | Norus CVC Cast Iron Waterfall Pump | 2HP
- Made of heavy-duty cast iron
- Single phase 230-volt
- Free shipping $99+Lower 48 states
- Price Match GuaranteeMatch or beat authorized dealers
- Satisfaction GuaranteedWe will make it right
- Secure checkoutShop Pay, PayPal & cards
Not sure which size you need?
Our experts are available to help! Call us to pick the right model, horsepower and cord length.
Mon–Fri 8am–6pm
Description
The CVC series pump is a rugged performer that can handle tough applications. Constructed of heavy-duty cast iron with an air filled motor, built in thermal overload protection and dual mechanical shaft seals. The vortex impeller design gives this pump excellent solids handling, yet still maintains high efficiencies for its class. The CVC has proven to offer reliable continuous duty service where other single phase models, in its class, have fallen short.
- Single Phase 230 Volt
- Vortex impeller for superior solids handling capability, up to 2″ diameter
- Air filled Class E Insulated heavy duty motor, operates cooler with higher efficiencies
- Double mechanical shaft seals made of silicon carbide operate in an oil bath providing longer service life and lower maintenance
- Capacitor and power cord connections are isolated from motor housing and easily accessible for field maintenance
- 32′ Cable Length
- Stainless Steel non corrosive hardware
- Auto cut thermal overload protects the pump from over current and over temperature
| Max Head: | 37′ |
| Horsepower: | 2 |
| Capacitor | 35 MF 400V |
| Amps: | 10 |
| Motor RPM | 1800 |
| Discharge Outlet: | 3″ FPT |
| Cord Length: | 32′ |
| Dimensions: | 22.9″ x 15.4″ |
| Weight | 103 |
| Warranty: | 2 Years |
| GPH per foot of Head | ||||||||
| 5′ | 10′ | 15′ | 20′ | 25′ | ||||
| 265 | 230 | 195 | 165 | 130 | ||||
