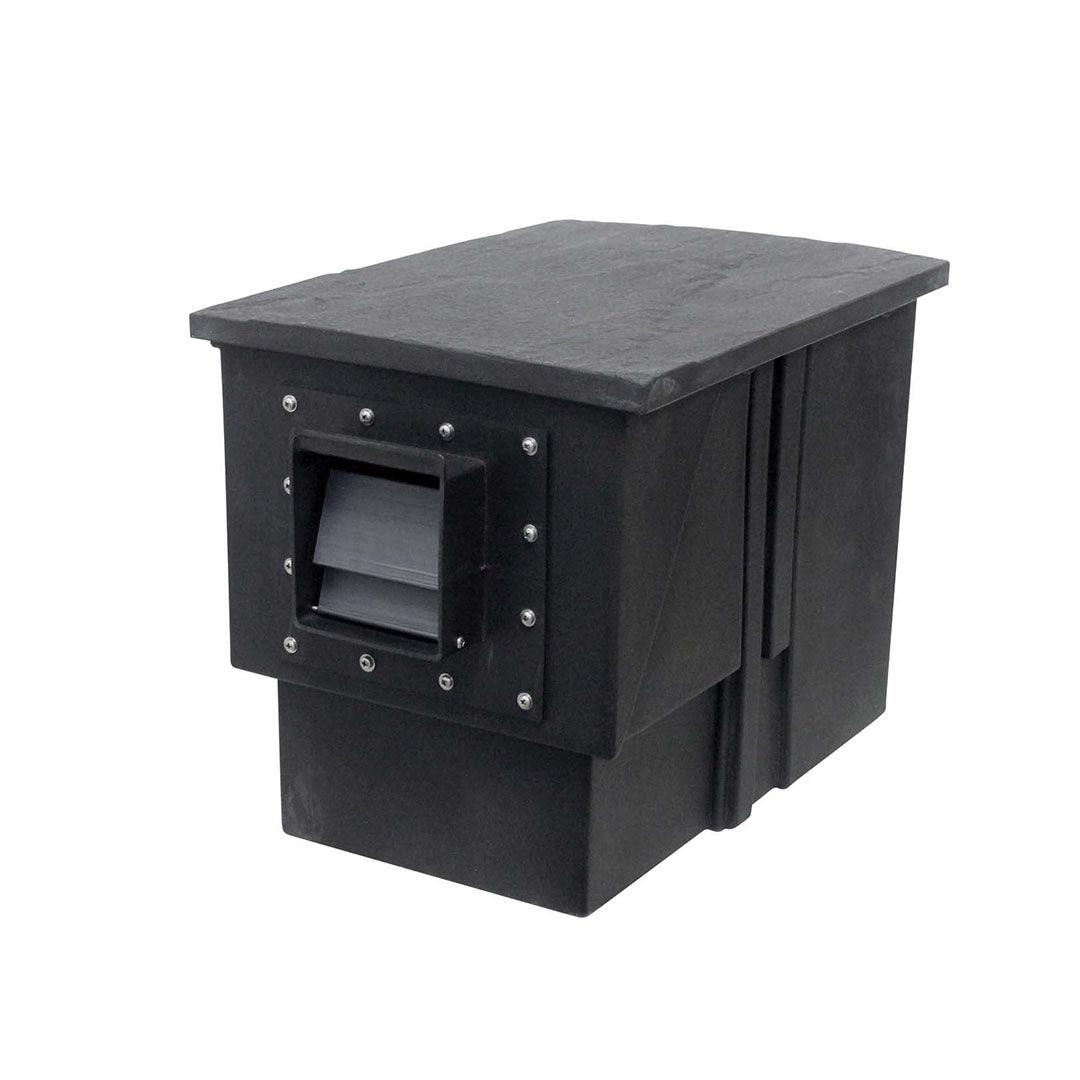

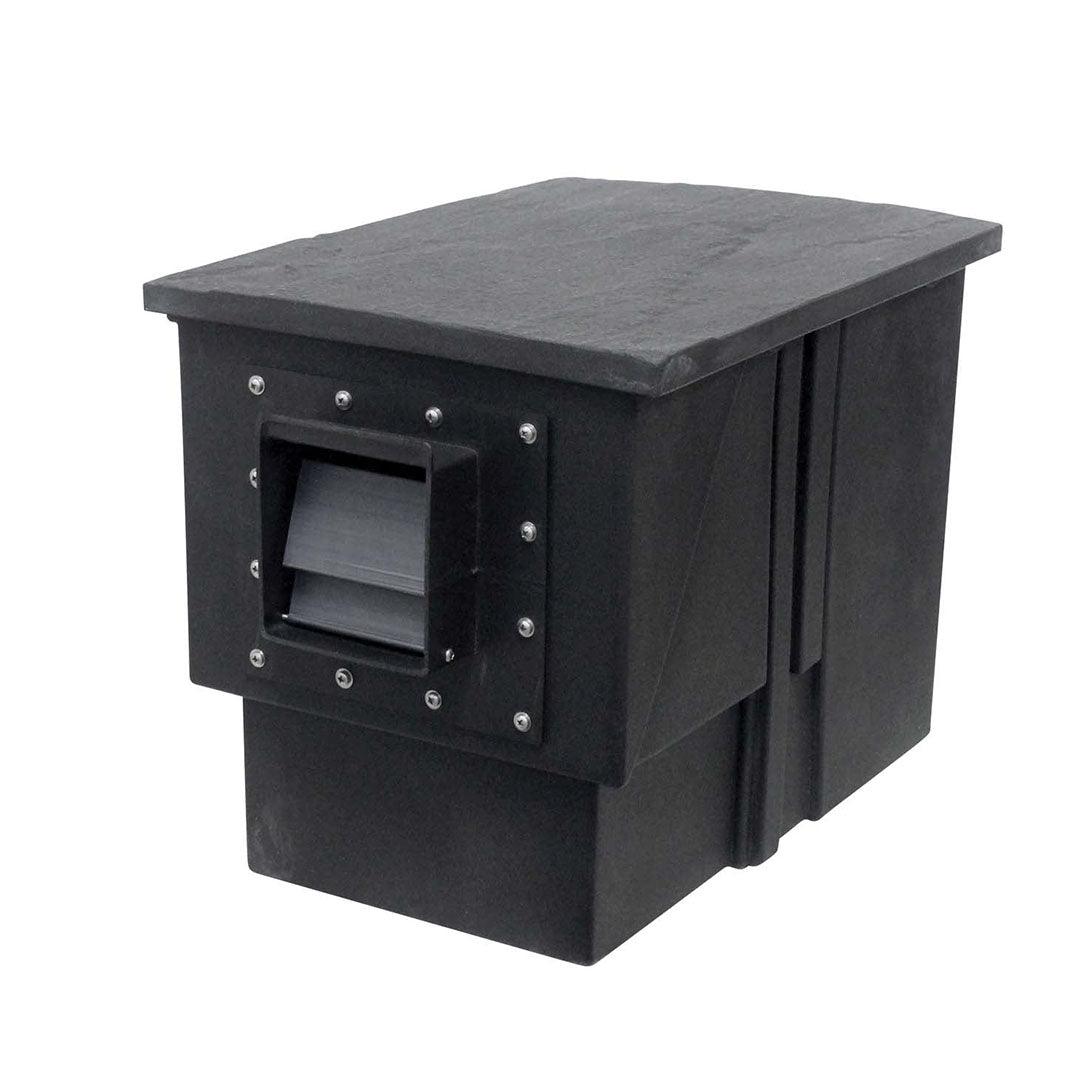

Easy Pro: Pro-Series Axiom Skimmer | 5000GPH | 7000GPH | 9000GPH | 11000GPH

EasyPro Pro-Series skimmer with a front-to-back design allowing pump to sit behind debris net instead of beside it. Available in 4 sizes ranging from 5000 to 11000 gph.

Pump NOT Included. Need help picking out a pump? Give us a call, we'll help you decide which one is best for your project.

PSA5000, PSA7000, PSA9000, PSA11000 Features Include:

• Two chamber front-to back design – with pump chamber sitting behind the debris net instead of along side it
• Two chamber design eliminates cutting filter pads to fit around the pump and plumbing
• Adjustable overflow for adjusting finished pond level
• One piece aluminium framed debris net for quick and easy cleaning
• Dual factory installed 2″ spinweld bulkhead fittings for plumbing and overflow connections
• Skimmers have a flange above the opening where water enters from the pond into the skimmer, allowing you to not only stack rocks along side but also above the skimmer opening
• Stainless steel hardware for securing liner



Compatible with:

• SETS2 Extension tube for setting skimmer back from pond edge
• PS1UV 36watt UV clarifer installed in skimmer
• Molded faux rock PS1LID



PSA5000 Axiom Skimmer

• Max Flow Rate 85gpm/5100 gph
• Weir 6"
• Dimensions 29"L x 19"W x 21"H
• Recommended Flow Rate 60-76gpm (3600-4560gph)
• Weight 35



PSA7000 Axiom Skimmer

• Max Flow Rate 118 gpm (7080 gph)
• Wei r8"
• Dimension s29"L x 19"W x 21"H
• Recommended Flow Rate 75-105 gpm (4500-6300 gph)
• Weight 35



PSA9000 Axiom Skimmer

• Max Flow Rate 150 gpm (9000 gph)
• Weir 8"
• Dimensions 33"L x 19"W x 23"H
• Recommended Flow Rate 100-135 gpm (6000-8100 gph)
• Weight 44

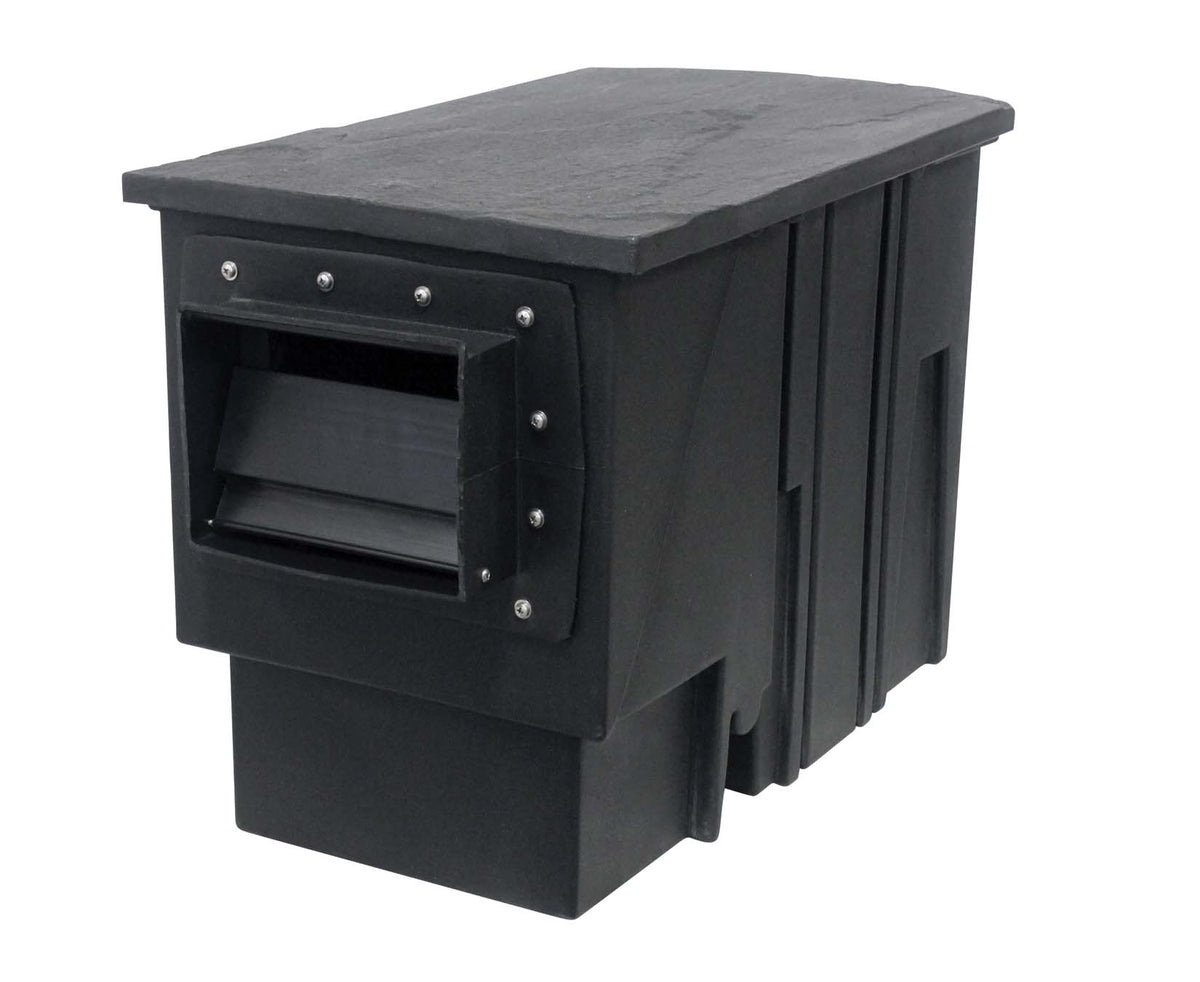

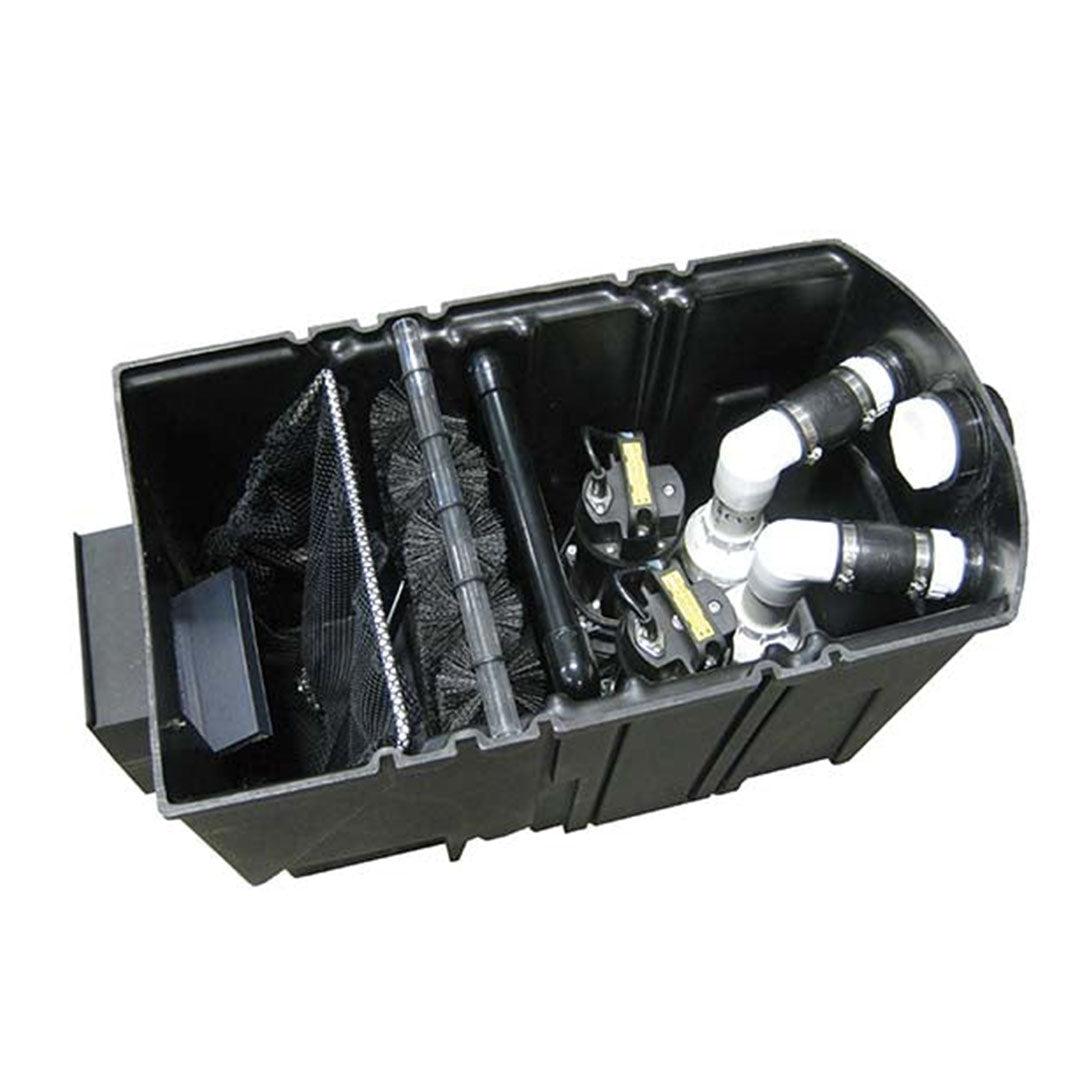

PSA11000 Axiom Skimmer

• Max Flow Rate 185 gpm (11,100gph)
• Weir 10"
• Dimensions 33"L x 19"W x 23"H
• Recommended Flow Rate 135-165 gpm (8100-9900gph)
• Weight 44

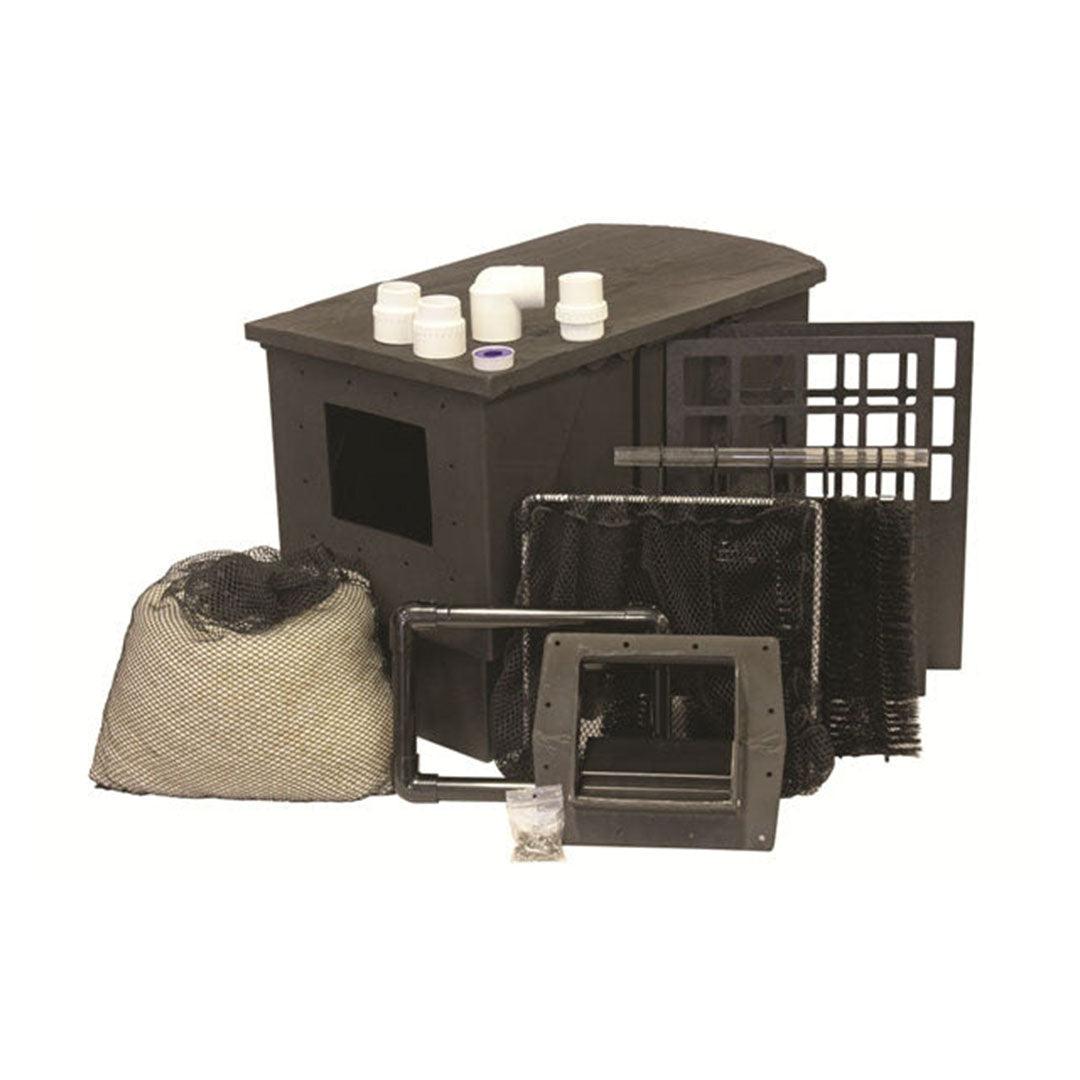

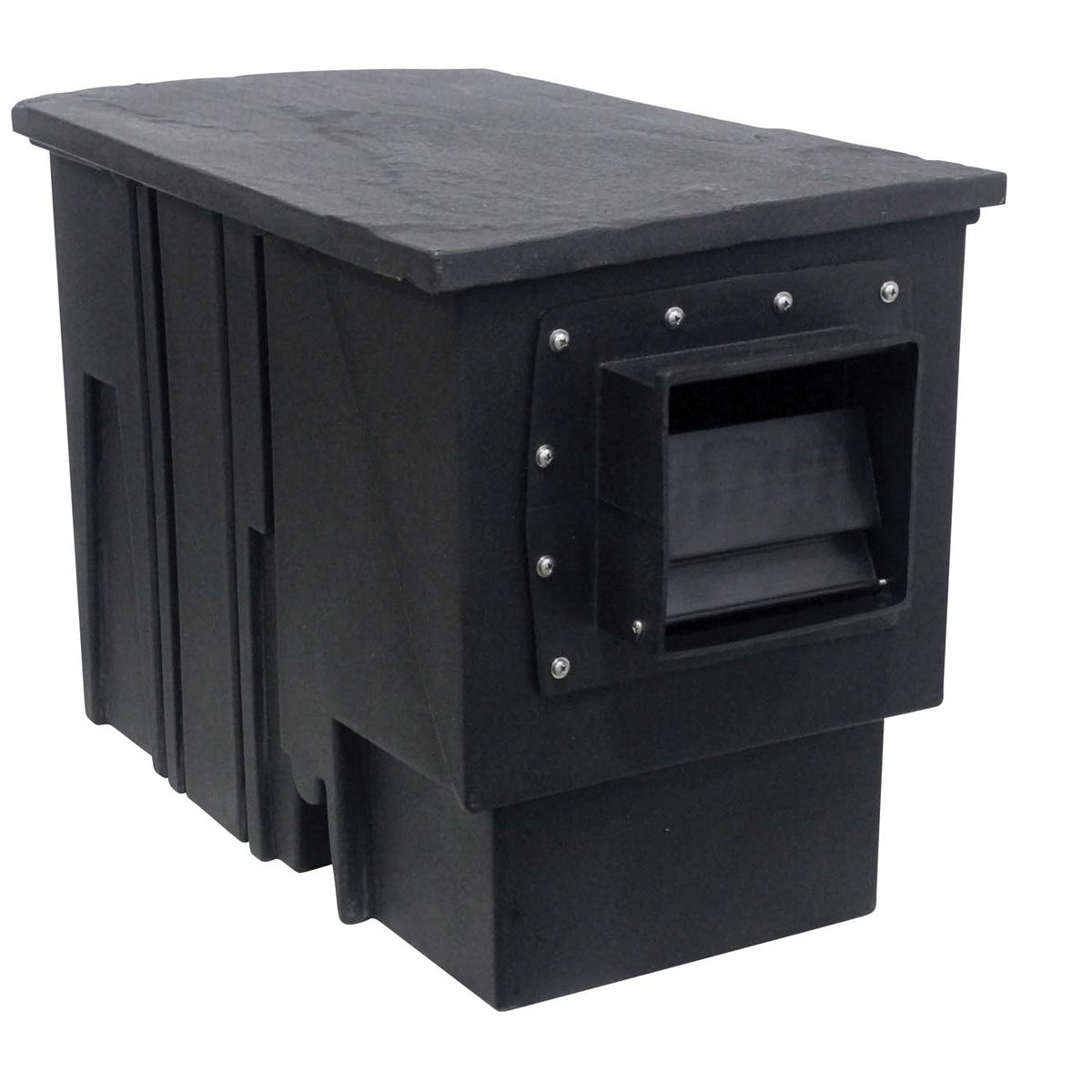

PSA3600D Axiom Skimmer/Filter Combo

Features Include:

• For ponds up to 4000 gallons – ponds with fish to 2000 gallons
• Maximum flow rate of 60 gpm (3600 gph)

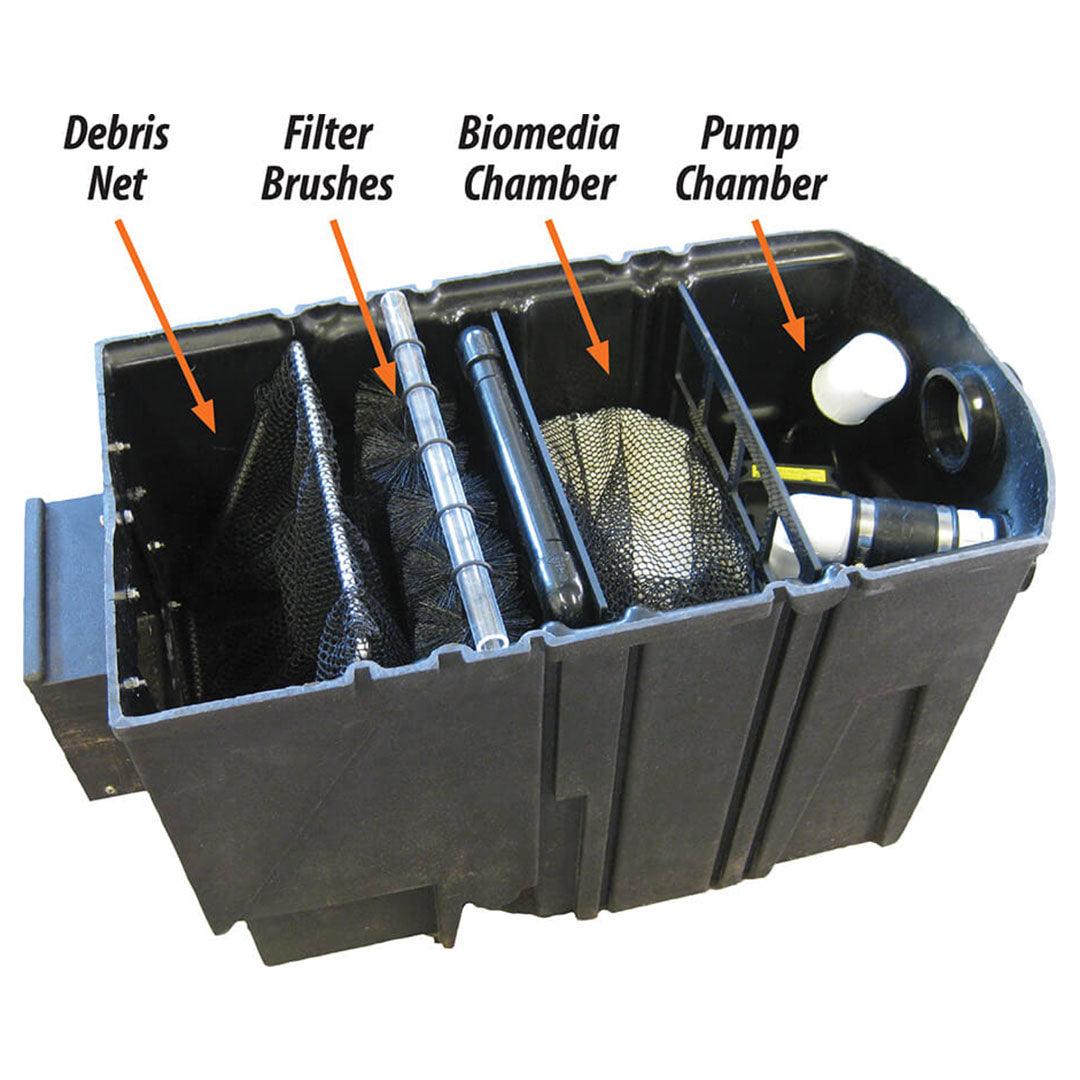

• Includes debris net and filter brushes for mechanical filtration and UTM1 biological media for compete filtration
• Two chamber front-to back design – with pump chamber sitting behind the debris net instead of along side it
• Factory installed spinweld bulkhead fittings for plumbing connections- Dual 2″ fittings
• Adjustable overflow for adjusting finished pond level
• One piece aluminium framed debris net for quick and easy cleaning
• Skimmers have a flange above the opening where water enters from the pond into the skimmer, allowing you to not only stack rocks along side but also above the skimmer opening
• Stainless steel hardware for securing liner
• 8″ water inlet

Compatible with:

• SETS2 Extension tube for setting skimmer back from pond edge



Additional Information

• Max Flow Rate 60 gpm (3600 gph)
• Weir 8"
• Dimensions 33"L x 19"W x 23"H
• Pond Size 2000 gallons with fish; 4000 gallons without fish
• Recommended Flow Rate 45-55 gpm (2700-3300 gph)
• Weight 59
